Description
The 100G CFP2 to QSFP28 Adapter module is a four-Channel, high performance, hot pluggable, and interconnect solution supporting 100G Ethernet and Telecom. The adapter converts a CFP MSA interface to 1-port of 100GE QSFP28.It is compliant with the CFP MSA. F-tone Networks 100G CFP2 to QSFP28 Adapter integrates four data lanes in each direction with operating at up to 28Gbps per lane. The adapter without the FEC (Forward Error Correction) and supports 100G QSFP28 LR4/ER4. When the 100GE network equipment’s CFP2 port has FEC function, it can support 100G QSFP28 SR4/PSM4/CWDM4/CLR4.
As showed in Figure 1, the adapter converts 4 parallel electrical data inputs to 4 parallel electrical data output signals through CDR circuits on both receiver and transmitter side.
Features
● Compliant to CFP2 Hardware Specification Version 1.0
● Compliant to CFP2 MSA Management Interface Specification Version 2.4
● 4 channels full-duplex transceiver
● Internal CDR circuits on both receiver and transmitter channels
● Transmission data rate up to 28Gbps per channel
● OTU4 compatible
● Without FEC (Forward Error Correction)
● 1 port QSFP28 TX&RX, supports 100G QSFP28 LR4/ER4.
● Supports 100G QSFP28 SR4/PSM4/CWDM4/CLR4 (when the 100GE network equipment’s CFP2 port has FEC function)
● MDIO digital diagnostic interface(Optional) and control capabilities
● Power class 3 (Adapter<2W max)
● Hot pluggable electrical interface
● Single 3.3V power supply
● RoHS 6 compliant(lead free)
● Case operating temperature
Commercial: 0 ~ +70℃
Industrial: -40 ~ +85℃
Applications
● 100GBE interconnects, IEEE 802.3ba 100GBASE-LR4(Adapter+QSFP28_LR4)
● High-speed core router connections& Datacom/Telecom switch
● Data aggregation and backplane applications
● Proprietary protocol and density application
Absolute Maximum Ratings
|
Parameter |
Symbol |
Min |
Max |
Unit |
|
Supply Voltage |
Vcc |
-0.5 |
3.6 |
V |
|
Input Voltage |
Vin |
-0.3 |
Vcc+0.3 |
V |
|
Storage Temperature |
Tst |
-20 |
85 |
ºC |
|
Humidity(non-condensing) |
Rh |
5 |
85 |
% |
*Exceeding any one of these values may destroy the device immediately
Recommended Operating Conditions
|
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
|
Supply Voltage |
Vcc |
3.13 |
3.3 |
3.47 |
V |
|
Operating Case temperature |
Tca |
0 |
70 |
ºC |
|
|
Data Rate Per Lane |
fd |
- |
25.78125 |
27.952 |
Gbps |
|
Power Dissipation |
Pm |
2 |
W |
||
|
Low Power Mode Dissipation |
Plow |
2 |
W |
||
|
Aggregate Bit Rate |
BRaggr |
103.125 |
111.8 |
Gbps |
Electrical Characteristics
|
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
Notes |
|
|
Differential input impedance |
Zin |
90 |
100 |
110 |
ohm |
||
|
Differential Output impedance |
Zout |
90 |
100 |
110 |
ohm |
||
|
25GBE |
Differential input voltage amplitude |
ΔVin |
300 |
900 |
mVp-p |
1 |
|
|
Differential output voltage amplitude |
ΔVout |
400 |
800 |
mVp-p |
2 |
||
|
Bit Error Rate |
BER |
E-12 |
3 |
||||
|
Input Logic Level High |
VIH |
2.0 |
VCC+0.3 |
V |
3.3V LVCOMS |
||
|
0.84 |
1.5 |
V |
1.2V LVCOMS |
||||
|
Input Logic Level Low |
VIL |
-0.3 |
0.8 |
V |
3.3V LVCOMS |
||
|
-0.3 |
0.36 |
V |
1.2V LVCOMS |
||||
|
Output Logic Level High |
VOH |
VCC-0.2 |
VCC |
V |
3.3V LVCOMS |
||
|
1.0 |
1.5 |
V |
1.2V LVCOMS |
||||
|
Output Logic Level Low |
VOL |
0 |
0.2 |
V |
3.3V LVCOMS |
||
|
-0.3 |
0.2 |
V |
1.2V LVCOMS |
||||
Note：
1. Differential input voltage amplitude is measured between TxnP and TxnN.
2. Differential output voltage amplitude is measured between RxnP and RxnN.
3. BER=10^-12; PRBS 2^该邮件地址已受到反垃圾邮件插件保护。要显示它需要在浏览器中启用 JavaScript。.

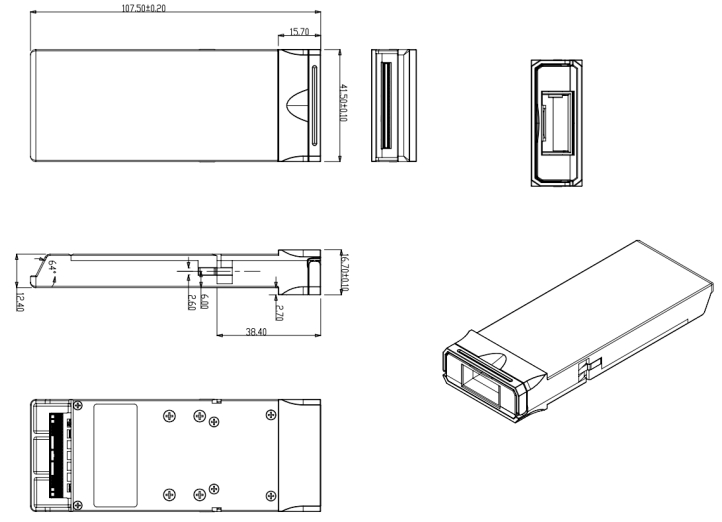

Mechanical Dimensions
Ordering Information
|
Part Number |
Product Description |
|
FTC2-HG-Q2-C-N |
100G CFP2 to QSFP28 Adapter, without FEC (Forward Error Correction), supports 100G QSFP28 LR4/ER4. Supports 100G QSFP28 SR4/PSM4/CWDM4/CLR4 (when the 100GE network equipment’s CFP2 port has FEC function),0ºC ~ +70ºC |
|
FTC2-HG-Q2-CI-N |
100G CFP2 to QSFP28 Adapter, without FEC (Forward Error Correction), supports 100G QSFP28 LR4/ER4. Supports 100G QSFP28 SR4/PSM4/CWDM4/CLR4 (when the 100GE network equipment’s CFP2 port has FEC function),-40ºC ~ +85ºC |
