Description
This series single mode transceiver is SFP+ module for duplex optical data communications. This module is designed for single mode fiber and operates at a nominal DWDM wavelength from 1528nm to 1566nm as specified by the ITU-T.It is designed to deploy in the DWDM networking equipment in metropolitan access and core networks.It is with the SFP+ 20 -pin connector to allow hot plug capability.
The transmitter section uses a DWDM EML laser and is a class 1 laser com pliant according to International Safety Standard IE C-60825.
The receiver section uses a PIN detector and a limiting post-amplifier IC. This series are designed to be compliant with SFP+ Multi-Source Agreement(MSA) Specification SFF-8431

Product Features
● Available in all C-Band Wavelengths on the 100GHz DWDM ITU Grid Cooled EML transmitter with TEC PIN photo diode receiver
● Support up to 10.3125Gb/s bit rates
● Compliant with SFP+ Electrical MSA SFF-8431
● Compliant with SFP+ Mechanical MSA SFF-8432
● Metal enclosure for lower EMI
● Power dissipation <1.5W
● Laser Class 1 IEC/CDRH compliant
● Links of 40km with 9/125 µm single mode fiber (SMF)
● Operating case temperature range:
Commercial:0 to 70 deg ℃
Industrial: -40 to 85 deg ℃

Applications
● DWDM 10.3125Gb/s SDH

Absolute Maximum Ratings

Parameter

Symbol

Min

Max

Units

Storage Temperature(Not Operating)

Tstg

-40

85

ºC

Relative Humidity - Operating

RHS

95

%

Power Supply Voltage

VCC

-0.5

4

V

Note：
1、Exceeding any of these values may immediately damage the device.

Recommended Operating Conditions

Parameter

Symbol

Min

Typ

Max

Unit

Notes

Case Operating Temperature

Tc

0

25

70

°C

Temperature Range = C

Case Operating Temperature

Tc

-40

25

85

°C

Temperature Range = I

Power Supply Voltage

Vcc

3.15

3.3

3.6

V

Power Supply Current

Icc

350

455

mA

Date Rate

DR

0.6

2.5

2.7

Gbps

Transmitter E-O Characteristics

Parameter

Symbol

Min

Typ

Max

Unit

Notes

Center Wavelength

λ

λ-0.1

λ+0.1

nm

1

Spectral Width(-20dB)

Δλ

1

nm

Side Mode Suppression Ratio

SMSR

35

dB

Average Optical Output Power

Po

-1

+4

dBm

Output Power with

Transmitter Disabled

Poff

-30

dBm

Extinction Ratio

Er

6

dB

Transmitter and Dispersion Penalty

TDP

-

2

dB

Transmitter Enable Voltage

VEN

0

0.8

V

Transmitter Disable Voltage

VD

2.0

Vcc

V

Differential Data Input Swing

Vinpp

120

850

mVpp

Output Optical Eye Mask

Compliant with IEEE802.3-2008

2

Note：
1、See C-band λc Wavelength Guide.
2、At least 1000 wave forms acquired,with minimum 5% margin against 802.3 mask.

Receiver O-E Characteristics

Parameter

Symbol

Min

Typ

Max

Unit

Notes

Operate Wavelength

/

1260

1620

nm

Sensitivity(BER of 1E-12) up to 10.3125Gb/s

/

-16

dBm

1

Saturation(BER of 1E-12)

Psat

-3

dBm

1

Receiver reflectance

RRx

-27

dB

LOS Asserted

T_ loss_on

-32

dBm

LOS De-Asserted

T_loss_off

-27

dBm

LOS Hysteresis

T_loss_Hs

0.5

5.0

dB

Differential Data Output Swing

VoutPP

350

910

mVpp

LOS Low Voltage

VLout

0.8

V

LOS High Voltage

VHout

2.0

V

Note：
1、PRBS 2^31-1, NRZ and including back to back.

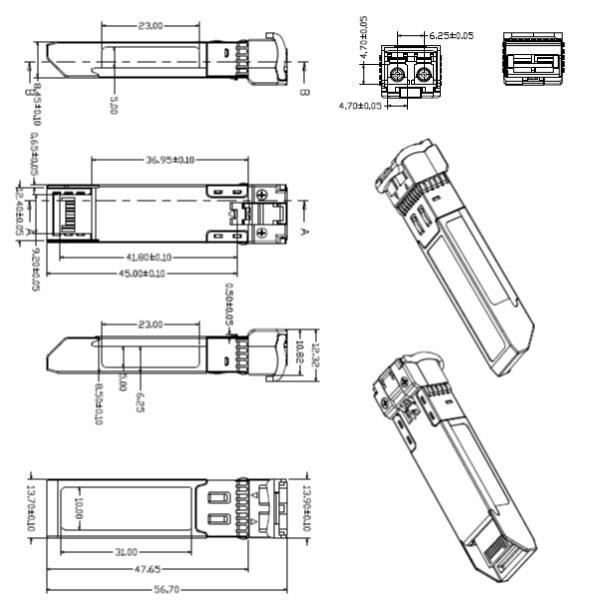

Mechanical Specifications4

Order Information

产品型号

封装

波长(-xx)

速率(xx)

传输距离  (-xx)

x

等级(x)

BYCS-Dxx1X-40Dxx

SFP+

波长可选

1X=10.3G

40=40km

空 不带DDM
D 带DDM

空 商业级
E 扩展级
I 工业级

Wavelength Guide Table
Wavelength table&Clasp Color：

XX

Wavelength (nm)

Clasp Color

XX

Wavelength (nm)

Clasp Color

27

1270

Grey

45

1450

Yellow

29

1290

Purple

47

1470

Grey

31

1310

Blue

49

1490

Purple

33

1330

Green

51

1510

Blue

35

1350

Yellow

53

1530

Green

37

1370

Orange

55

1550

Yellow

39

1390

Red

57

1570

Orange

41

1410

Brown

59

1590

Red

43

1430

Green

61

1610

Brown
