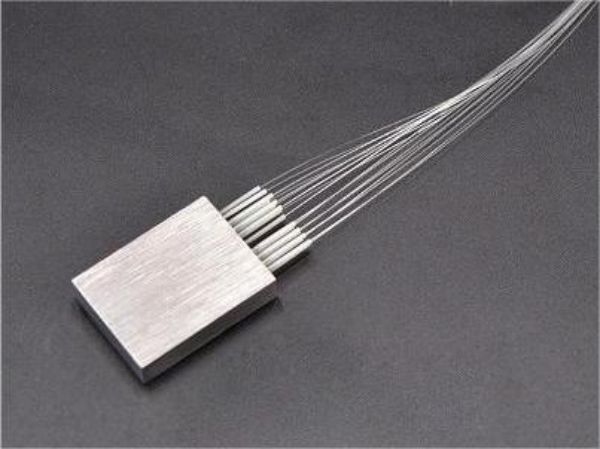

北亿纤通16CH UC-LWDM mux demux系列产品是基于LAN-WDM 滤波片技术和自由空间光程压缩技术的新一代绿色细波分器件,它具有超低插损、超小封装尺寸、超高波长精度和超宽范围温度稳定特性,广泛应用于局域网、5G前传网、WDM-PON网络带宽升级部署和高速收发模块。
借助全玻璃多层级的设计,北亿纤通的UC-LWDM mux demux器件与三端口技术的传统LWDM器件相比较体积缩小到五十分之一、插损减少一半以上,并且中心波长可单个通道精准调节。

产品特点:
● 超低插损,16通道的典型插损值1.8dB;
● 超小封装体积,典型的器件厚度为5.90mm,满足6.0mm厚度的机箱间隔;
● 波长精度高,可以单个通道精细调节;
● 超工业温度范围运行,满足无温控环境运行;
● 激光焊接封装,单侧出纤结构,便于安装。

产品应用:
● 集成到各类标准和非标准LWDM高速收发模块中;
● 适用于点对点的LWDM网络系统;
● 5G前传网络;
● -40°C〜 85°C的工作温度范围,适应各类无温控的LWDM PON网络,起到低碳节能作用;
● 采用耐腐蚀的不锈钢壳体封装,满足其他苛刻的使用环境。

技术参数

Parameter

Unit

Specifications

Number of channels

CH

16

Operating wavelength range

nm

1260~1360

Channel center wavelength

nm

1264.95,1269.23,1273.54,1277.89,1282.26,1286.66,1291.10,1295.56,1300.58,1304.58,1309.14,1313.73,1318.35,1323.00,1327.69,1332.41   or ITU

Channel spacing

Hz

800G

Pass bandwidth

nm

± 1.1

Insertion loss(max)

dB

≤2.5

Insertion loss(typical)

dB

≤1.8

Wavelength thermal stability

nm/°C

≤0.002

Adjacent channel isolation

dB

≥30

No-adjacent channel isolation

dB

≥40

Return loss

dB

≥45

Directivity

dB

≥50

PDL

dB

≤0.5

Passband ripple

dB

≤0.4

Power handling

mW

≤500

Fiber type

-

ITU-T G657 A2

Pigtail type

-

0.9mm white loose tube

Operating temperature

°C

-40~+85

Storage temperature

°C

-40~+85

Footprint dimension (LxWxH)

mm

30*23*6.5 or 30*23*5.9

Pigtail length

m

≥1.0













北亿纤通 | F-tone Networks

企业邮箱:该邮件地址已受到反垃圾邮件插件保护。要显示它需要在浏览器中启用 JavaScript。
企业手机:19081343401
企业电话:028-85255257
企业传真:028-85977702

注:本产品有全国产化型号可选

本产品为FT-W1系列,仅展示部分参数,如有需要,请您联系我们。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
