Features
● Transmitter using butterfly optical device with TEC
● Support ITU C-Band，wide range of DWDM wavelengths can be selected
● Wide operating frequency from 10MHz to 18GHz
● Flat frequency response： ≤±1.5dB typical
● High RF input P-1dB：≥27dBm@10GH
● Good noise figure：≤</br<>48dB@18GHz
● High dynamic range：SFDR up to 123dB·Hz2/3
● Automatic optical power control（APC）and auto temperature control（ATC）functions
● Excellent EMI/EMC design，ROHs compliant and CE certification
Applications
● Antenna remoting
● Satellite communication
● Delay line
● Distributed antenna system
● Wideband wireless communication
● OFDM fiber transmission

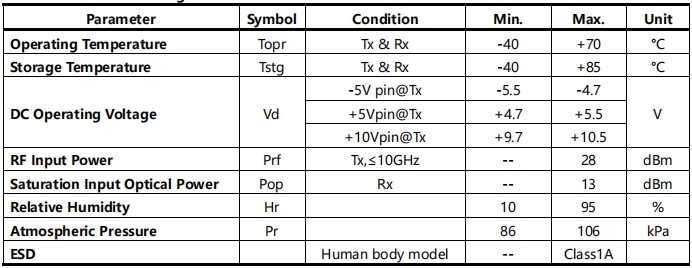

Absolute Maximum Ratings
Note：Operation beyond these absolute maximum conditions may degrade device performance, lead to device failure,shorter lifetime, and will invalidate the device warranty.

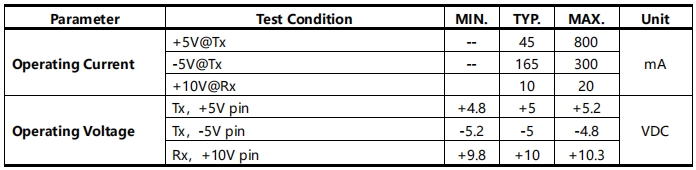

Typical Specification
Note（1）: Test with 1.0-meter SMF-28 fiber.
Mechanical (unit: mm)

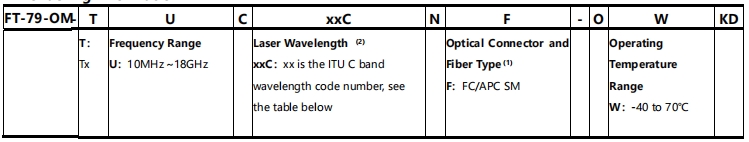

Ordering Information
Note:
(1)Other optical wavelengths can be customized.

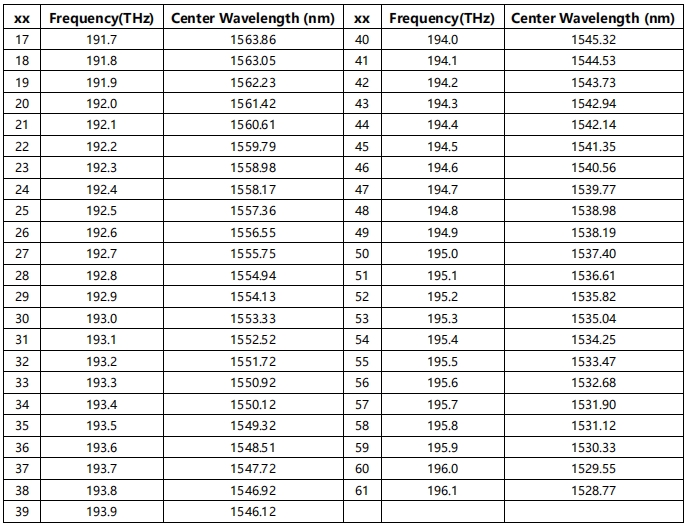

(2)ITU C-band Wavelength Code Number Table：
Optical Receiver
Note:（1） Other types of optical fiber connector type can be customized.
北亿纤通 | F-tone Networks
企业邮箱：该邮件地址已受到反垃圾邮件插件保护。要显示它需要在浏览器中启用 JavaScript。
企业手机：19081343401
企业电话：028-85255257
企业传真：028-85977702
注：本产品有全国产化型号可选
本产品为FT-79系列，仅展示部分参数，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
