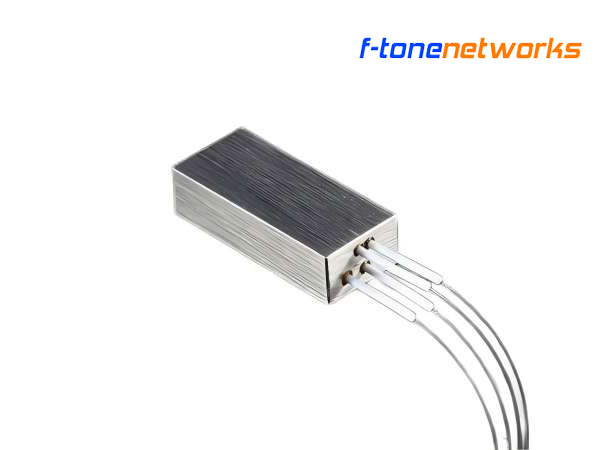

北亿纤通4CH UC DWDM Mux demux是新一代的4通道微型DWDM复用解复用器件,其封装尺寸为25106.5mm,典型插损值0.8dB,它利用TFF光学薄膜滤波片,采用三维自由空间光程压缩技术的设计。与标准三端口器件相比较,它的体积缩小到五十分之一,插损值减小到二分之一;采用全玻璃材料等设计,提升器件热应力控制水平,获得更高的产品指标一致性和可靠性,器件能够满足工业温度的运行条件;壳体封装采用可伐材料激光焊接工艺,确保器件能够在苛刻的环境下使用。
产品特点:
● 超低插损,4通道的典型插损值小于0.8dB,支持远距离高质量传输;
● 超小封装体积,为模块或者机箱腾出安装空间或者通风空间;
● 波长精度高,可单个通道精细调节;
● 超工业温度范围运行,完全无源:无电源需要,无制冷需要;
● 激光焊接封装,单侧出纤结构,便于安装。
产品应用:
● 借助微型化尺寸,集成到各类标准和非标准DWDM收发器中;
● 适用于主干网、城域网和区域网;
● NG-PON2、FTTX为解决光纤到户的最后一公里提供珍贵的插损支持;
● -40°C〜 85°C的工作温度范围,适应各类无温控特殊应用环境,是绿色低碳应用;
● 采用耐腐蚀的不锈钢壳体封装,满足苛刻的使用环境。
技术指标:
Parameter |
Unit |
Specifications |
Number of channels |
CH |
4 |
Channel center wavelength |
nm |
C-band,ITU or Customization |
Channel spacing |
Hz |
100G /200G |
Pass bandwidth |
nm |
lc ± 0.11/ lc ± 0.25 |
Insertion loss(max) |
dB |
≤1.0 |
Insertion loss(typical) |
dB |
≤0.8 |
Wavelength thermal stability |
nm/°C |
≤0.001 |
Adjacent channel isolation |
dB |
≥30 |
No-adjacent channel isolation |
dB |
≥40 |
Return loss |
dB |
≥45 |
Directivity |
dB |
≥50 |
PDL |
dB |
≤0.3 |
Passband ripple |
dB |
≤0.4 |
Power handling |
mW |
≤500 |
Fiber type |
- |
ITU-T G657 A2 |
Pigtail type |
- |
0.9mm white loose tube |
Operating temperature |
°C |
-40~+85 |
Storage temperature |
°C |
-40~+85 |
Footprint dimension (LxWxH) |
mm |
25*10.8*6.5 or 25*10.8*5.95 |
Pigtail length |
m |
≥1.0 |
