Features
● Small size
● Low power consumption
● Flat frequency response
● Excellent EMI/EMC design
● Automatic optical power control
● High dynamic input and output range
● Wide operating frequency from 100MHz to 4GHz
Applications
● Antenna remoting
● GPS signal transport
● Wireless signal transport
● All-Digital QAM network
● Data and video distribution
● Distributed antenna system

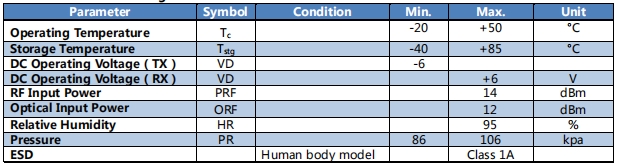

Absolute Maximum Ratings

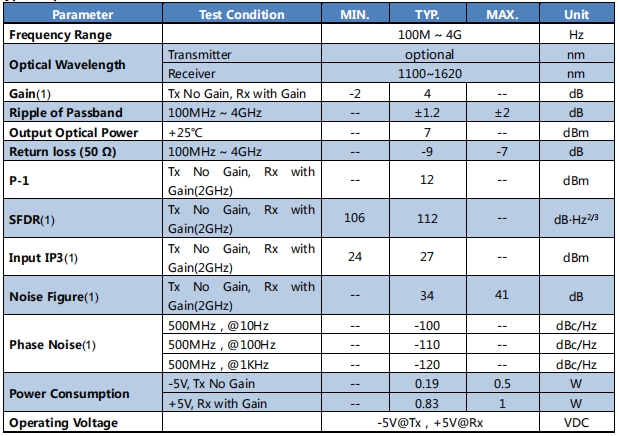

Typical Specification
Note: (1) Test at 0dB optical insertion loss.

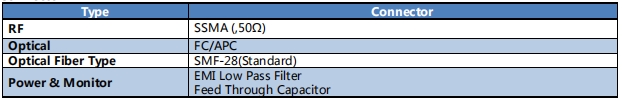

Connector
PIN Function
Optical Transmitter
Optical Receiver

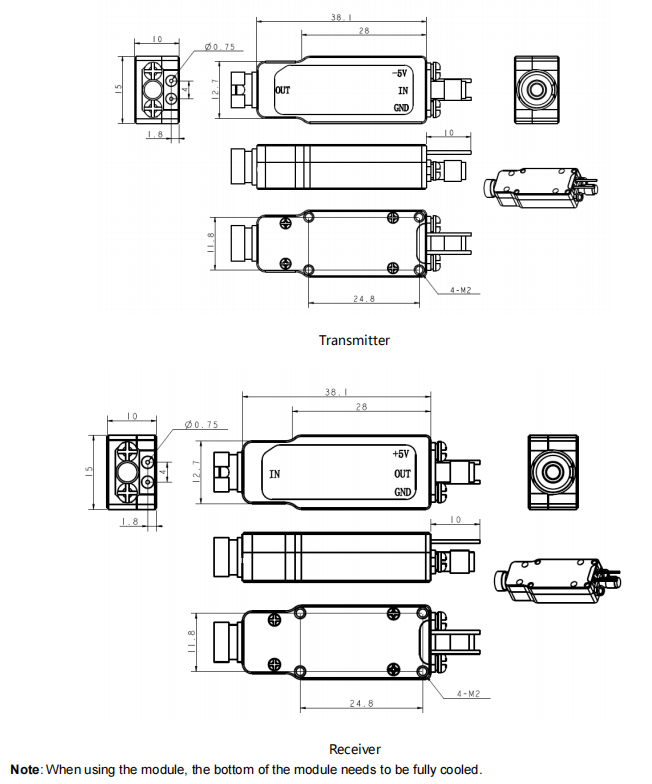

Mechanical (unit: mm)

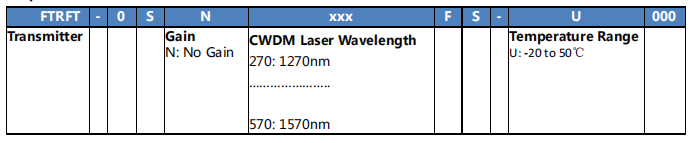

Ordering Information
Optical Transmitter
Optical Receiver
北亿纤通 | F-tone Networks
企业邮箱：该邮件地址已受到反垃圾邮件插件保护。要显示它需要在浏览器中启用 JavaScript。
企业手机：19081343401
企业电话：028-85255257
企业传真：028-85977702
注：本产品有全国产化型号可选
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
