特性
- 典型传输速率10G(单通道)
- 微插座可插拔BGA封装形式
- 八路信号并行传输,光收发一体模块
- 采用VCSEL/PIN阵列,具有功耗小的特点
- 工作温度-40℃~+70℃
- 3V单电源供电
应用
甚短距离的高速数据通信连接(板级互连、机架间互连、系统级互连),服务器与存储器阵列的互连。
主要性能指标
典型传输速率 |
10Gbps |
中心波长 |
850nm |
平均发射光功率 |
-5~+1dBm(-40℃~+70℃) |
接收灵敏度 |
≤-10dBm(-40℃~+70℃) |
电源电压 |
3.3V |
工作温度 |
-40℃~+70℃ |
订购信息
FBGA-4TR1X-02 |
x |
-xx |
-xx |
-xx |
F-tone BGA 4发4收一 体光模块,10G每通道 |
空 商业级 |
100mm 尾纤长度(可定制) |
MT MT尾纤输出 MP MPO尾纤输出 |
GC:全国产 空:非全国产 |
I 工业级 |
||||
M 军品级 |

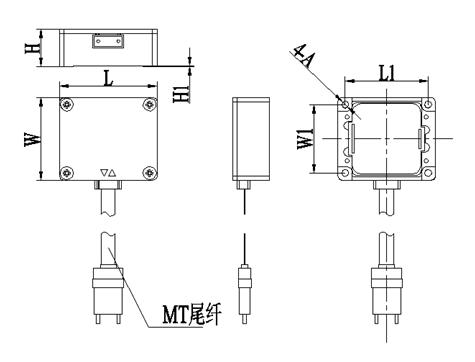

结构尺寸图
单位:mm 注:尾纤长度和接头类型可以订制
W |
W1 |
L |
L1 |
H |
H1 |
A |
|
最大值 |
19.1 |
15.72 |
22.5 |
19.05 |
8.7 |
- |
- |
公称值 |
18.9 |
15.62 |
22.3 |
18.95 |
8.5 |
0.15 |
M1.6 |
最小值 |
18.7 |
15.52 |
22.1 |
18.85 |
8.3 |
- |
- |
北亿纤通 | F-tone Networks
企业邮箱:该邮件地址已受到反垃圾邮件插件保护。要显示它需要在浏览器中启用 JavaScript。
企业手机:19081343401
企业电话:028-85255257
企业传真:028-85977702
注:本产品有全国产化型号可选
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
