Description
F-tone Networks High Bandwidth Zero-Chirp FT-46-F10 modulators are based on the Mach-Zehnder Interferometer (MZI) architect ure. They are manufactured using the highly reliable titanium indiffusion technology in X-Cut, Y-Propagating LiNbO3 substrates . The FT-46-F10 is a single drive modulator designed for high bit rate advanced metro to long haul communication systems that requi res the superior performance. The FT-46-F10 modulator contains an integrated photo detector that may be used to set and lock the DC bias on the modulator as well as provide an estimate of the modulator output optical power.
Features
● Titanium-Indiffused Waveguide
● X-Cut LiNbO3
● Electro-Optic Bandwidth > 12.5 GHz
● Optical Insertion Loss < 4.5 dB
● RF Vπ Voltage: 5 V (typ. @ 1 kHz)
● Integrated Monitor Photodiode
● Integrated Polarizer
● Compliance with Telcordia GR-468-CORE
Applications
● External Intensity Modulation NRZ and RZ
● High Frequency RF Signal Over Fiber Optic Links
● Instrumentation
Optical and Electrical Specifications
|
Parameter |
Conditions |
Min |
Typ |
Max |
Unit |
|
|
Optical |
||||||
|
Operating Wavelength |
- |
1525 |
- |
1570 |
nm |
|
|
Insertion Loss |
w/o connector |
- |
- |
4.5 |
dB |
|
|
Extinction Ratio |
@DC |
20 |
24 |
- |
dB |
|
|
Maximum Optical Input Power |
CW |
- |
- |
100 |
mW |
|
|
PRBS Eye Extinction Ratio |
10.7Gb/s PRBS 231-1 |
13 |
- |
- |
dB |
|
|
Electrical-RF Port |
||||||
|
S21 Electro-Optic Bandwidth |
-3dBe,130MHz |
11 |
- |
- |
GHz |
|
|
Bandwidth Ripple |
130MHz-12.5GHZ |
-1 |
- |
1 |
dB |
|
|
S11 Electrical Return Loss |
130MHz-12.5GHz |
10 |
11 |
- |
dB |
|
|
RFVπVoltage |
@1kHz |
- |
5 |
6.5 |
V |
|
|
Electrical-Bias Port |
||||||
|
BiasVπVoltage |
@1kHz |
- |
5.5 |
6.0 |
V |
|
|
Pinout and Fiber Specifications |
||||||
|
RF Connector |
GPO male |
|||||
|
nput Fiber |
Corning PM15-U25D or PM15-U40D (Panda Fiber), > 1.0 m, 900 µm loose tube fiber |
|||||
|
Output Fiber |
Corning SMF-28 or PM15-U25D (Panda Fiber), >1.0 m, 900 µm loose tube fiber |
|||||
Performance Characteristics

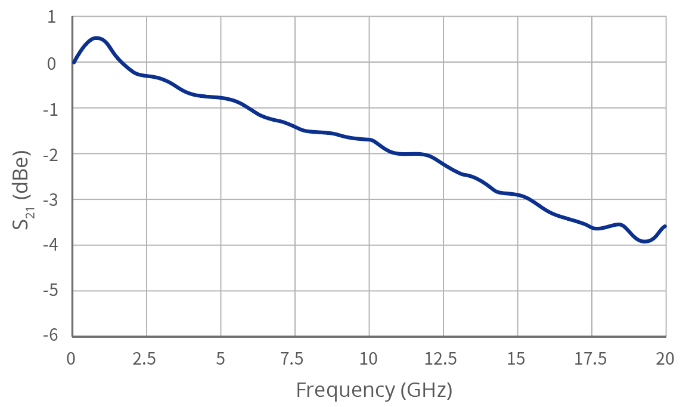

Electro optical response

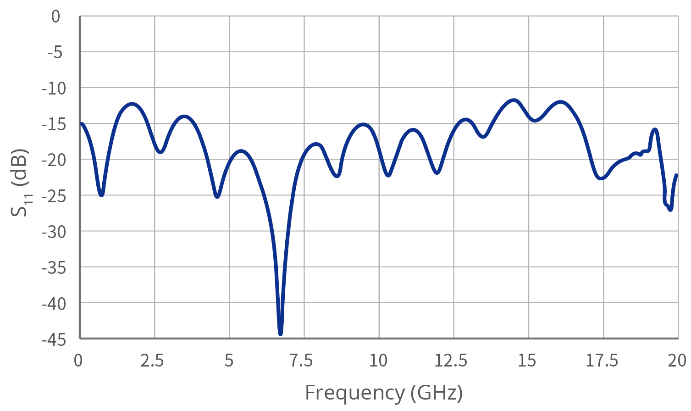

Electrical return loss

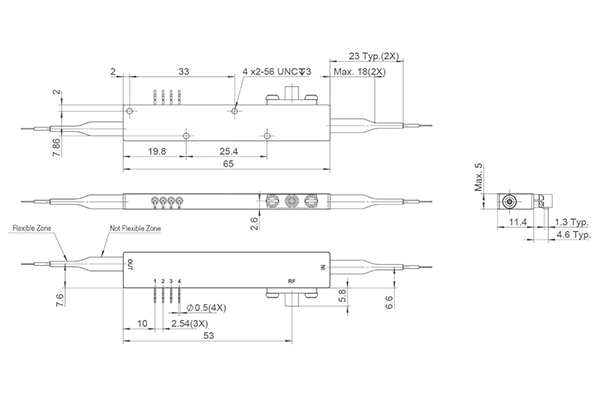

Package Dimensions
All dimensions measured in mm. L1 is fiber length with 900 µm loose tube. L2 is length of bare fiber.
北亿纤通 | F-tone Networks
企业邮箱： 该邮件地址已受到反垃圾邮件插件保护。要显示它需要在浏览器中启用 JavaScript。
企业手机：19081343401
企业电话：028-85255257
企业传真：028-85977702
注：本产品有全国产化型号可选
本产品为FT-46系列，仅展示部分参数，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
