Description
The FT-46-40G-IQ-XT modulator design is based on a dual parallel structure of two Mach-Zehnder modulators embedded in a Mach Zehnder super-structure. Each internal modulator is designed to have EO bandwidth above 20 GHz. Monitor photodiode is provided for automatic bias control. The FT-46-40G-IQ-XT version is provided extended operating temperature at - 55 to + 85°C for different environmental applications.
Features
● Titanium-Indiffused Waveguide
● X-Cut LiNbO3
● Electro-Optic Bandwidth > 30 GHz
● Low Optical Insertion Loss
● Compliance with Telcordia GR-468-CORE
● Extended Operating Temperature at - 55 °C to + 85 °C
● Hermatically Sealed
● Excellent Linearity
Applications
● OFDM Coding
● QPSK Coding
● QAM Coding
● CS-SSB (Carrier Suppressed Single Side Band)
● FMCW LiDAR in Autonomous Driving

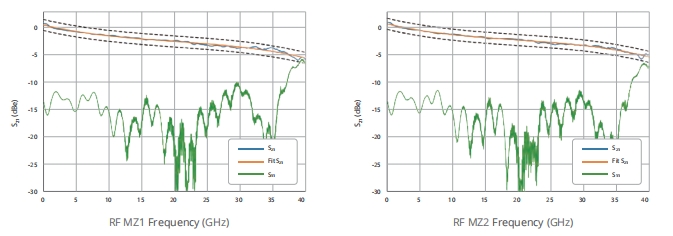

Performance Characteristics

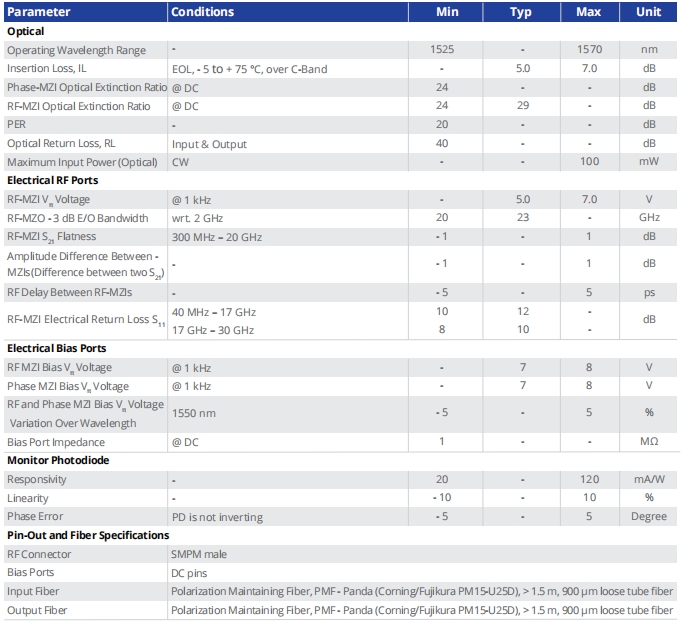

Specifications

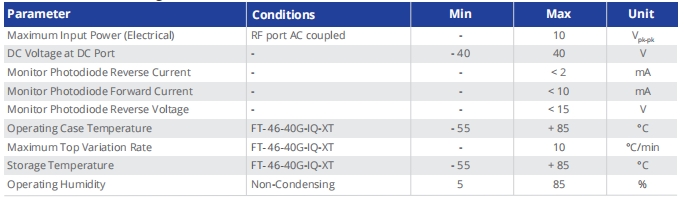

Absolute Maximum Ratings

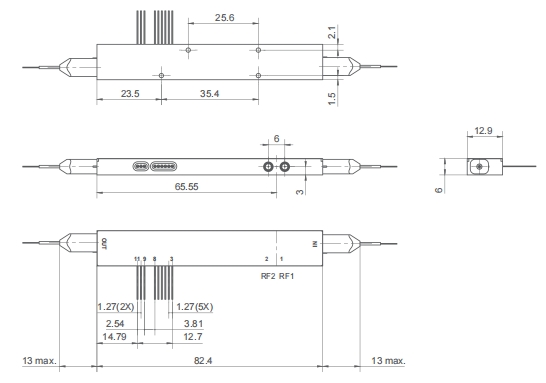

Mechanical Outline
北亿纤通 | F-tone Networks
企业邮箱： 该邮件地址已受到反垃圾邮件插件保护。要显示它需要在浏览器中启用 JavaScript。
企业手机：19081343401
企业电话：028-85255257
企业传真：028-85977702
注：本产品有全国产化型号可选
本产品为FT-46系列，仅展示部分参数，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
