Description

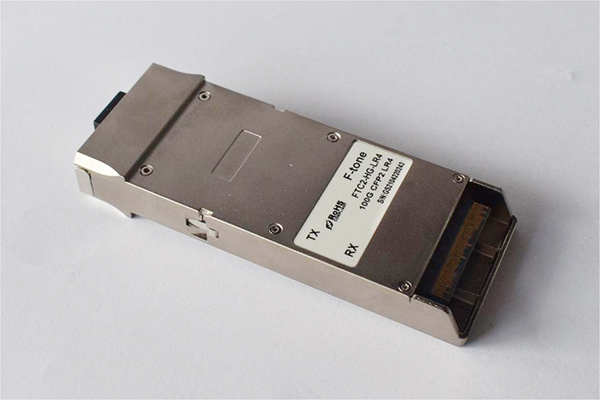

The F-tone Networks CFP2 100GEBASE-LR4 optical Receiver is a hot pluggable 100Gbps small-form-factor transceiver module .It is compliant with IEEE802.3ba and CFP MSA. The module is a multi-rate optical transceiver and intended to support Telecom and Datacom applications.
Features
● Operating optical data rate up to 112Gbps
● PIN ROSA only (without Transmitter )
● CFP2 MSA compliant
● Compliant to IEEE 802.3baspecification for 100GBASE-LR4
● Compliant to OTU4
● Transmission distance up to 10km
● Operating electrical serial data rate up to 27.952493Gbps
● 4 parallel electrical serial interface and AC coupling of CML signals
● MDIO real-time digital diagnostic(Optional) and control capabilities
● RX output CDR retiming
● Hot pluggable
● Total Power Consumption<3W
● 3.3V power supply
● Duplex LC receptacle optical interface
● RoHS 6 compliant(lead free)
● Compliant with CFP2 MSA hardware specification
● Compliant with CFP MSA management specification
● Case operating temperature
Commercial: 0 ~ +70℃
Industrial: -40 ~ +85℃
Applications
● 100GbE IEEE 802.3ba 100GBASE-LR4
● OTN-OTU4
● Switch to switch interface or Switch to router interface
Absolute Maximum Ratings
|
Parameter |
Symbol |
Unit |
Min |
Max |
|
Supply Voltage |
VCC3 |
V |
-0.5 |
3.6 |
|
Storage Temperature |
Ts |
°C |
-40 |
85 |
|
Operating Case Temperature |
Tc |
°C |
0 |
70 |
|
Relative Humidity (Non condensation) |
- |
% |
5 |
95 |
Recommended Operating Conditions
|
Parameter |
Symbol |
Unit |
Min |
Typ |
Max |
|
Operating Case Temperature |
Tc |
°C |
0 |
- |
70 |
|
Supply Voltage |
VCC |
V |
3.13 |
3.3 |
3.47 |
|
Supply Current |
ICC |
A |
- |
- |
0.9 |
|
Power Dissipation |
- |
W |
- |
- |
3 |
Optical Characteristics(Tested under recommended operating conditions, unless otherwise noted)
|
Parameter |
Symbol |
Unit |
Value |
|||
|
Min |
Typ |
Max |
||||
|
Optical Receiver Characteristics |
||||||
|
Receiver Sensitivity in OMA for Each Lane(100GbE) |
SOMA |
dBm |
- |
- |
-8.6 |
|
|
Receiver Sensitivity for Each Lane(OTU4) |
-10.8 |
|||||
|
Los Assert |
dBm |
-12 |
||||
|
Los De-assert |
dBm |
-19 |
||||
|
Los Hysteresis |
dBm |
1 |
||||
Electrical Characteristics(Tested under recommended operating conditions, unless otherwise noted)
|
Parameter |
Symbol |
Unit |
Min |
Typ |
Max |
Note |
|
Receiver |
||||||
|
Differential Data Output Swing |
Vout,pp |
mV |
400 |
- |
800 |
|
|
Differential Signal Output Resistance |
Ω |
80 |
- |
120 |
||
|
Differential Signal Input Resistance |
Ω |
80 |
- |
120 |
||
|
LOS Fault |
- |
V |
Vdd3-0.5 |
- |
Vdd3 |
|
|
LOS Normal |
- |
V |
0 |
- |
+ 0.5 |
1 |
|
Note1: Vdd3 is host +3.3V power supply. |
||||||
Low Speed Electrical Interface
|
Parameter |
Symbol |
Unit |
Min |
Max |
Note |
|
Input High Voltage |
VIH |
V |
2.0 |
Vcc3 + 0.3 |
|
|
VIL |
V |
-0.3 |
0.8 |
||
|
Input Low Voltage |
VOH |
V |
Vdd3-0.5 |
Vdd3 + 0.3 |
1 |
|
VOL |
V |
0.0 |
0.4 |
||
|
Input Leakage Current |
Vih |
V |
Vdd3*0.7 |
Vdd3 + 0.5 |
1 |
|
Vil |
V |
-0.3 |
Vdd3*0.3 |
||
|
Output High Voltage (IOH = 100uA) |
Voh |
V |
Vdd3-0.5 |
Vdd3 + 0.3 |
|
|
Vol |
V |
0.0 |
0.4 |
|
|
|
Output low Voltage (IOH = 100uA) |
IL |
uA |
-10 |
10 |
|
|
Minimum Pulse Width of Control Pin Signal |
KHz |
400 |
|
||
|
1.2V LVCMOS Electrical Characteristics |
|||||
|
Input High Voltage |
1.2VIH |
V |
0.84 |
1.5 |
|
|
Input Low Voltage |
1.2VIL |
V |
-0.3 |
0.36 |
|
|
Input Leakage Current |
1.2IIN |
uA |
-100 |
+ 100 |
|
|
Output High Voltage |
1.2V0H |
V |
1.0 |
1.5 |
|
|
Output Low Voltage |
1.2V0L |
V |
-0.3 |
0.2 |
|
|
Output High Current |
1.2I0H |
mA |
-4 |
|
|
|
Output Low Current |
1.2I0L |
mA |
+4 |
|
|
|
Input Capacitance |
Ci |
pF |
10 |
||

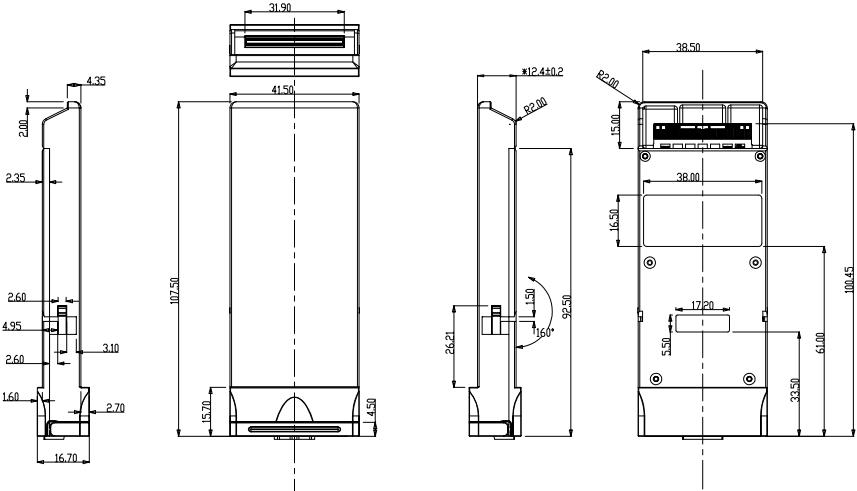

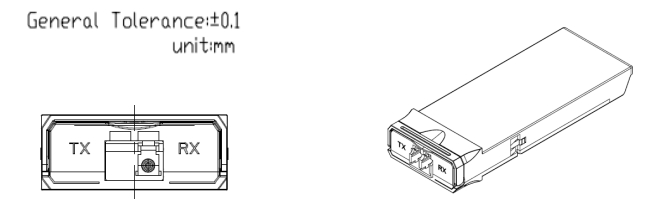

Mechanical Dimensions
Ordering Information
|
Part Number |
Product Description |
|
FTC2-HG-LR4R |
CFP2, Receiver only(without TOSA), 100GE/OTU4,10km,100GBASE-LR4,0ºC ~ +70ºC |
|
FTC2-HG-LR4RI |
CFP2, Receiver only(without TOSA), 100GE/OTU4,10km,100GBASE-LR4,-40ºC ~ +85ºC |
北亿纤通 | F-tone Networks
企业邮箱： 该邮件地址已受到反垃圾邮件插件保护。要显示它需要在浏览器中启用 JavaScript。
企业手机：19081343401
企业电话：028-85255257
企业传真：028-85977702
注：本产品有全国产化型号可选
本产品为CFP2光模块，仅展示部分参数，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
