Description

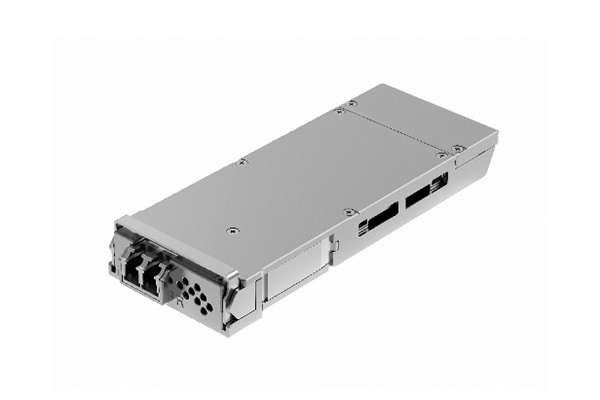

The F-tone Networks Coherent 100G/200G CFP2-DCO optical module, using a 104pin CFP2-MSA connector, serves as an electrical interface to the system board. The physical diagram of the module is shown in Figure :module physical diagram
The module is mainly divided into three main functions: DSP, optical device and control unit. All the control interface pins are implemented by the internal control unit, which can also be used for the terminal modulator control, software management, and alarm performance reporting.

Features
● Maximum operating rate of 211.45Gbps
● Modulation format PM-QPSK (100G), PM-16QAM (200G)
● 100GE, OTU4 / OTUCn service access
● Hot-swappable CFP2 package
● Electrical interface supports OTL4.4, FOIC1.4, CAUI-4, and OTLC2.8
● Support the protocol "CFP2 MSA Hardware Specification 1.0 with modifications"
● Support the protocol "CFP MSA Management Interface Specification 2.2 with modifications"
● Optional proximal distal data loop back
● Support for OTN framer and Ethernet MAC / PCS
● Supports LLDP packet listening
● Maximum power consumption of 24W
● Case operating temperature：
      Commercial: 0 ~ +70℃
      Industrial: -40 ~ +85℃

Applications
● 100GbE IEEE 802.3bj;
● ITU-T G.709/Y.1331 for Optical transport network
● Switch to switch interface or Switch to router interface
● Access, Metro, Long-haul Ethernet DWDM Networks

1.1 Optical port characteristics-100G
Table 1 Description of the 100 G optical port performance indicators

1.2 Optical port characteristics-200G
Table 2 Description of 200 G optical port performance indicators

2 Electrical characteristics
2.1 Power supply requirements
The coherent CFP2 optical module is powered by a separate 3.3V power supply coming from the motherboard. The internal device power supply of the optical module is converted from 3.3V power supply. The 3.3V power supply requirements are shown in Table 3. All the voltages are tested at the connector interface.

 Table 2 Power supply characteristics of Coherent CFP2 optical module

Note: The maximum minimum parameter value describes the full temperature range of the module life. Typical parameter values describe the operating temperature of 25°C, normal power supply, and life start indicators.
Note 1: The maximum current value of each pipe pin shall not exceed 1.3A.
Note 2: The maximum value of the Icc is for the design reference, and the normal operating current cannot exceed the Pw_normal / Vcc.

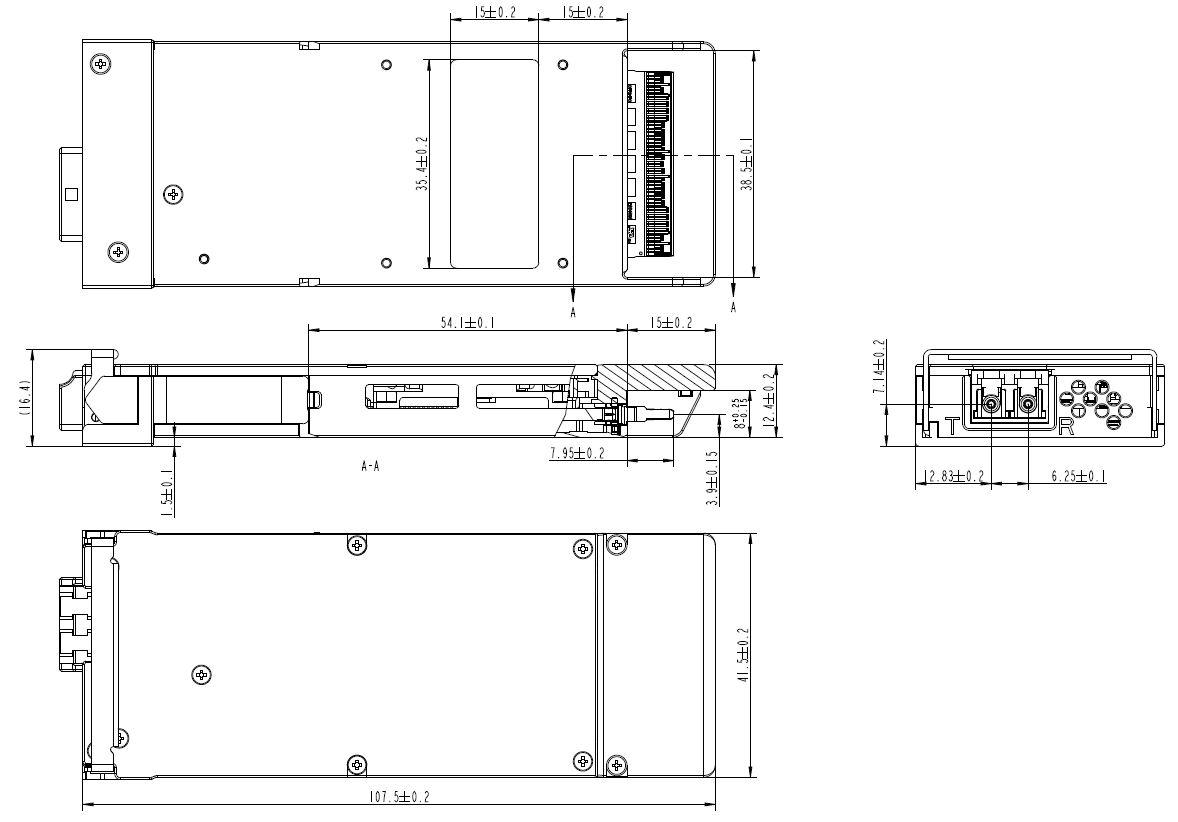

Mechanical Dimensions

Ordering Information

北亿纤通 | F-tone Networks

企业邮箱： 该邮件地址已受到反垃圾邮件插件保护。要显示它需要在浏览器中启用 JavaScript。
企业手机：19081343401
企业电话：028-85255257
企业传真：028-85977702

注：本产品有全国产化型号可选
本产品为CFP2光模块，仅展示部分参数，如有需要，请联系我们。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
