Description
The F-tone Networks FTQ2-HG-SR4I-CPRI is a Four-Channel, Pluggable, Fiber-Optic SQFP28 for 4*24.33 Gigabit 5G eCPRI QSFP28 SR4（Industrial Grade）Applications. This transceiver is a high performance module for short-range multi-lane data communication and interconnect applications.Each lane can operate at 24.33Gbps up to 70 m using OM3 fiber or 100 m using OM4 fiber. These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38 contact edge type connector. The optical interface uses an 12 fiber MTP (MPO) connector. This module incorporates F-tone Networks proven circuit and VCSEL technology to provide reliable long life, high performance, and consistent service.

Features
● Hot-pluggable QSFP28 form factor
● 4 channels full-duplex transceiver module
● Supports 4*24.33Gb/s bit rate
● 4 channels 850nm VCSEL array
● 4 channels PIN photo-detector array
● Internal CDR circuits on both receiver and transmitter channels
● 2W maximum power dissipation
● Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF
● Single MTP/MPO receptacle
● Built-in digital diagnostic functions
● Operating case temperature range: -40°C to 85°C
● 3.3V power supply voltage
● RoHS 6 compliant (lead free)

Applications
● 5G eCPRI QSFP28 SR4（Industrial grade）

Absolute Maximum Ratings

Parameter

Symbol

Min

Max

Unit

Supply Voltage

Vcc

-0.3

3.6

V

Input Voltage

Vin

-0.3

Vcc+0.3

V

Storage Temperature

Ts

-20

85

ºC

Case Operating Temperature

Tc

-40

85

ºC

Humidity (non-condensing)

Rh

5

95

%

Recommended Operating Conditions

Parameter

Symbol

Min

Typical

Max

Unit

Supply Voltage

Vcc

3.13

3.3

3.47

V

Operating Case Temperature

Tc

-40

85

ºC

Data Rate Per Lane

fd

24.33

Gb/s

Humidity

Rh

5

85

%

Power Dissipation

Pm

2

W

Fiber Bend Radius

Rb

3

cm



Electrical Specifications

Parameter

Symbol

Min

Typical

Max

Unit

Differential Input Impedance

Zin

90

100

110

ohm

Differential Output Impedance

Zout

90

100

110

ohm

Differential Input Voltage Amplitude1

ΔVin

300

1100

mVp-p

Differential Output Voltage Amplitude2

ΔVout

500

800

mVp-p

Skew

Sw

300

ps

Bit Error Rate

BER

5×10-5

Input Logic Level High

VIH

2.0

Vcc

V

Input Logic Level Low

VIL

0

0.8

V

Output Logic Level High

VOH

Vcc-0.5

Vcc

V

Output Logic Level Low

VOL

0

0.4

V

Note:

  • Differential input voltage amplitude is measured between TxnP and TxnN.
  • Differential output voltage amplitude is measured between RxnP and RxnN.

Optical Characteristics

Parameter

Symbol

Min

Typical

Max

Unit

Transmitter

Center Wavelength

λc

840

850

860

nm

RMS Spectral Width

∆λ

0.6

nm

Average Launch Power (each lane)

Pout

-8.4

2.4

dBm

Optical Modulation Amplitude (each lane)

OMA

-6.4

3

dBm

Transmitter and Dispersion Eye Closure (each lane)

TDEC

4.3

dB

Extinction Ratio

ER

3

dB

Average Launch Power of OFF Transmitter (each lane)

Poff

-30

dB

Eye Mask Coordinates1: X1, X2, X3, Y1, Y2, Y3

{0.3, 0.38, 0.45, 0.35, 0.41, 0.5}

Receiver

Center Wavelength

λc

840

850

860

nm

Stressed Receiver Sensitivity in OMA2

-5.2

dBm

Average Power at Receiver

Input (each lane)

-10.3

2.4

dBm

Receiver Reflectance

RR

-12

dB

LOS Assert

LOSA

-30

dBm

LOS De-Assert – OMA

LOSD

-7.5

dBm

LOS Hysteresis

LOSH

0.5

dB

Note:

  • Hit Ratio = 5×10-5
  • Measured with conformance test signal at TP3 for BER=5E-5

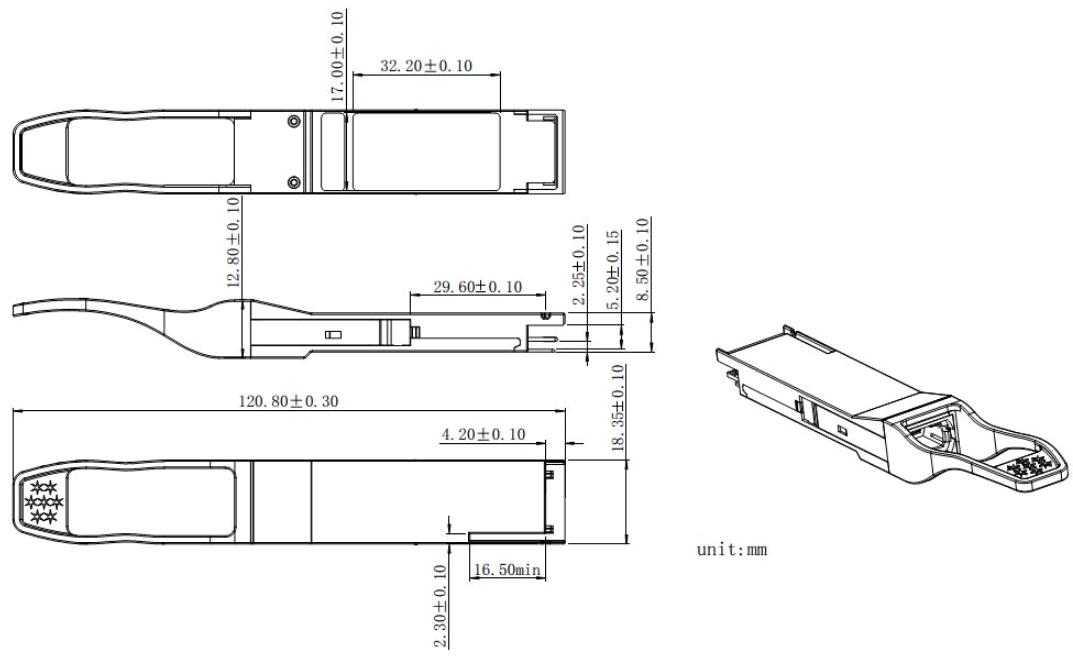

Mechanical Dimensions44

Ordering Information

Part Number

Product Description

FTQ2-HG-SR4I-CPRI

CPRI QSFP28 SR4, 4*24.33Gb/s, 850nm, 70m on OM3 Multimode Fiber (MMF)and 100m on OM4 MMF , MTP/MPO













北亿纤通 | F-tone Networks

企业邮箱： 该邮件地址已受到反垃圾邮件插件保护。要显示它需要在浏览器中启用 JavaScript。
企业手机：19081343401
企业电话：028-85255257
企业传真：028-85977702

注：本产品有全国产化型号可选

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
