Description
F-tone Networks’s FTXP-H2-SR10xx CXP transceiver modules is a high performance, low power consumption, long reach interconnect solution supporting 100G Ethernet, Infiniband QDR,DDR,SDR,1G/2G/4G/8G/10G fiber channel and PCIe. It is compliant with the 120Gbits Small Form factor Hot-Pluggable CXP-interface. F-tone Networks’s CXP transceiver modules is an assembly of 12 full-duplex lanes, where each lane is capable of transmitting data at rates up to 10.5Gb/s, providing an aggregated rate of 120Gb/s.

Features
● 12-channel full-duplex transceiver module
● Hot Pluggable CXP footprint
● Maximum link length of 300m on OM3 or 400m on OM4 Multimode Fiber (MMF)
● Multirate capability: 1.06Gb/s to 10.5Gb/s per channel
● Unretimed CPPI electrical interface
● Requires 3.3V power supply only
● Low power dissipation: <4.5W
● Reliable VCSEL array technology
● Single MPO connector receptacle
● RoHS-6 Compliant (lead-free)
● Case operating temperature
      Commercial: 0 ~ +70℃
       Industrial: -40 ~ +85℃

Applications
● 100GBASE-SR10 100G Ethernet
● Multiple 1G/2G/4G/8G/10G Fibre Channel
● Infiniband transmission at 12ch SDR, DDR and QDR
● Switches, Routers
● Data Centers
● Other 120G Interconnect Requirement

General Product Characteristics

Parameter

Value

Unit

Note

Module Form Factor

CXP

Number of Lanes

12 Tx and 12 Rx

Maximum Aggregate Data Rate

126

Gb/s

Maximum Data Rate per Lane

10.5

Gb/s

Protocols Supported

Typical applications include 100G Ethernet, Infiniband, Fibre Channel, SATA/SAS3

Electrical Interface and Pin-out

84-pin edge connector

Pin-out as defined by the CXP Specification

Optical Cable Type Required

Multimode ribbon 24-fiber cable assembly, MPO connector

Maximum Power Consumption per End

4.5

Watts

Varies with output voltage swing and pre-emphasis settings

Management Interface

Serial, I2C-based, 450 kHz maximum frequency

As defined by the CXP Specification



Absolute Maximum Ratings

Parameter

Symbol

Min

Max

Unit

Supply Voltage

Vcc

-0.3

3.6

V

Input Voltage

Vin

-0.3

Vcc+0.3

V

Storage Temperature

Tst

-20

85

ºC

Case Operating Temperature

Top

0

70

ºC

Humidity(non-condensing)

Rh

5

95

%



Recommended Operating Conditions

Parameter

Symbol

Min

Typical

Max

Unit

Supply Voltage

Vcc

3.13

3.3

3.47

V

Operating Case temperature

Tca

0

70

ºC

Data Rate Per Lane

fd

1.06

10.5

Gbps

Humidity

Rh

5

85

%

Power Dissipation

Pm

4.5

W



Specifications

Parameter

Symbol

Min

Typical

Max

Unit

Differential input impedance

Zin

90

100

110

ohm

Differential Output impedance

Zout

90

100

110

ohm

Differential input voltage amplitude  aAmplitude

ΔVin

200

1200

mVp-p

Differential output voltage amplitude

ΔVout

600

800

mVp-p

Skew

Sw

300

ps

Bit Error Rate

BR

E-12

Input Logic Level High

VIH

2.0

VCC

V

Input Logic Level Low

VIL

0

0.8

V

Output Logic Level High

VOH

VCC-0.5

VCC

V

Output Logic Level Low

VOL

0

0.4

V

Note：
1.BER=10^-12; PRBS 2^该邮件地址已受到反垃圾邮件插件保护。要显示它需要在浏览器中启用 JavaScript。.
2.   Differential input voltage amplitude is measured between TxnP and TxnN
3.   Differential output voltage amplitude is measured between RxnP and RxnN.

Electrical Characteristics (TOP = 0 to 70℃, VCC = 3.3 ± 5% Volts)
NOTE: The FTXP-H2-SR10xx requires that a CPPI-compliant CXP electrical connector be used on the host board in order to guarantee its electrical interface specification. Please check with your connector supplier.

Parameter

Symbol

Min

Typical

Max

Unit

Ref.

Supply Voltag

Vcc1, VccTx, VccRx

3.15

3.3

3.45

V

Supply Current

Icc

950

1050

mA

Module Total Power

P

3.5

W

1

Link Turn-On Time

Transmit turn-on time

2000

ms

2

Transmitter (per Lane)

Single ended input voltage tolerance

VinT

-0.3

4.0

V

Differential data input swing

Vin,pp

120

1200

mVpp

3

Differential input threshold

50

mV

AC common mode input voltage tolerance (RMS)

15

mV

Differential input return loss

Per IEEE 802.3ba, Section 86A.4.1.1

dB

4

J2 Jitter Tolerance

Jt2

0.17

UI

J9 Jitter Tolerance

Jt9

0.29

UI

Data Dependent Pulse Width Shrinkage

DDPWS

0.07

UI

Eye mask coordinates {X1, X2 Y1, Y2}

0.11, 0.31 95, 350

UI mV

5

Receiver (per Lane)

Single-ended output voltage

-0.3

4.0

V

Differential data output swing

Vout,pp

0

800

mVpp

6,7

AC common mode output voltage (RMS)

7.5

mV

Termination mismatch at 1 MHx

5

%

Differential output return loss

Per IEEE 802.3ba, Section 86A.4.2.1

dB

4

Common mode output return loss

Per IEEE 802.3ba, Section 86A.4.2.2

dB

4

Output transition time, 20% to 80%

28

ps

J2 Jitter output

Jo2

0.42

UI

J9 Jitter output

Jo9

0.65

UI

Eye mask coordinates {X1, X2 Y1, Y2}

0.29, 0.5 150, 425

UI mV

5

Power Supply Ripple Tolerance

PSR

50

mVpp

Notes:
1. Maximum total power value is specified across the full temperature and voltage range.
2. From power-on and end of any fault conditions.
3. After internal AC coupling. Self-biasing 100 Ohm differential input.
4. 10 MHz to 11.1 GHz range
5. Hit ratio = 5 x 10E-5
6. AC coupled with 100 Ohm differential output impedance.
7. Settable in 4 discrete steps via the I2C interface. See Figure 2 for Vout settings.

Optical Characteristics (TOP = 0 to 70℃, VCC = 3.3 ± 5% Volts)

Parameter

Symbol

Min

Typical

Max

Unit

Ref.

Transmitter (per Lane)

Signaling Speed per Lane

10.5

GBd

1

Center wavelength

840

860

nm

RMS Spectral Width

SW

0.65

nm

Average Launch Power per Lane

TXPx

-7.6

2.4

dBm

Transmit OMA per Lane

TxOMA

-5.6

3.0

dBm

2

Difference in Power between any two lanes [OMA]

DPx

4.0

dB

Peak Power per Lane

PPx

4.0

dBm

Launch Power [OMA] minus TDP per Lane

P-TDP

-6.5

dBm

TDP per Lane

TDP

3.5

dBm

Optical Extinction Ratio

ER

3.0

dB

Optical Return Loss Tolerance

ORL

12

dB

Encircled Flux

FLX

> 86% at 19 um < 30% at 4.5 um

dBm

Average launch power of OFF transmitter, per lane

-30

dBm

Relative Intensity Noise

RIN

-128

dB/Hz

3

Transmitter eye mask definition {X1, X2, X3, Y1, Y2, Y3}

0.23, 0.34, 0.43, 0.27, 0.35, 0.4

Receiver (per Lane)

Signaling Speed per Lane

10.5

GBd

4

Center wavelength

840

860

nm

Damage Threshold

DT

3.4

dBm

Average Receive Power per Lane

RXPx

-9.5

2.4

dBm

Receive Power (OMA) per Lane

RxOMA

3.0

dBm

Stressed Receiver Sensitivity (OMA) per Lane

SRS

-5.4

dBm

Peak Power, per lane

PPx

4

dBm

Receiver Reflectance

Rfl

-12

dB

Vertical eye closure penalty, per lane

1.9

dB

Stressed eye J2 jitter, per Lane

0.3

UI

Stressed eye J9 jitter, per Lane

0.47

UI

OMA of each aggressor lane

-0.4

dBm

Receiver jitter tolerance [OMA], per Lane

-5.4

dBm

Rx jitter tolerance: Jitter frequency

(75, 5)

kHz, UI

and p-p amplitude

(375, 1)

kHz, UI

LOS De-Assert

LOSD

-11

dBm

LOS Assert

LOSA

-14

dBm

LOS Hysteresis

1

dB

Notes:
1. Transmitter consists of 12 lasers operating at a maximum rate of 10.5Gb/s each.
2. Even if TDP is <0.9dB, the OMA min must exceed this value.
3. RIN is scaled by 10*log (10/4) to maintain SNR outside of transmitter.
4. Receiver consists of 12 photodetectors operating at a maximum rate of 10.5Gb/s each.

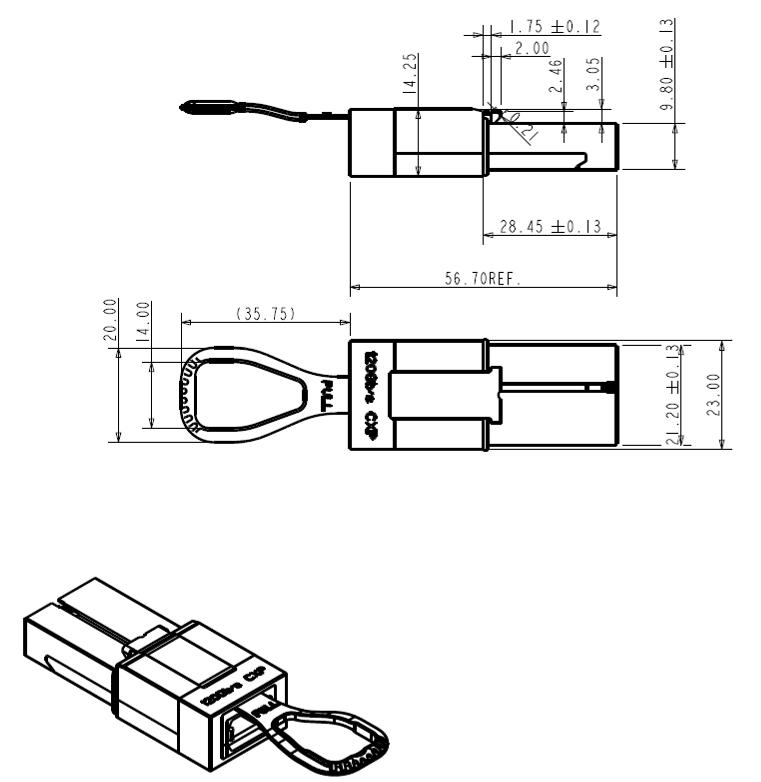

Mechanical Dimensions

25.3.24 14

Ordering Information

Part Number

Product Description

FTXP-H2-SR10

CXP Optical Transceivers, 12Channel X 10.5Gb/s, MPO24 OM3 300m 0~70℃

FTXP-H2-SR10I

CXP Optical Transceivers, 12Channel X 10.5Gb/s, MPO24 OM3 300m -40~85℃













北亿纤通 | F-tone Networks

企业邮箱： 该邮件地址已受到反垃圾邮件插件保护。要显示它需要在浏览器中启用 JavaScript。
企业手机：19081343401
企业电话：028-85255257
企业传真：028-85977702

注：本产品有全国产化型号可选
本产品为CXP光模块，仅展示部分参数，如有需要，请联系我们。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
