Features
● Low Insertion Loss
● Wide Wavelength Range
● Low Crosstalk
● High Stability, High Reliability
● Latching and Non-latching
● Epoxy-free on Optical Path
Applications
● Configurable OADM
● Metropolitan Area Network
● System Monitoring
● R&D in Laboratory
D2×2 SM Performance
|
Parameters |
FT-13- D 2×2-S |
|
|
Wavelength Range |
nm |
1260～1650 |
|
Operating |
nm |
1310/1550 |
|
Insertion Loss |
dB |
Typ:1.0 Max:1.5 |
|
Return Loss |
dB |
≥50 |
|
Crosstalk |
dB |
≥55 |
|
PDL |
dB |
≤0.05 |
|
WDL |
dB |
≤0.25 |
|
TDL |
dB |
≤0.3 |
|
Repeatability |
dB |
≤±0.02 |
|
Power supply |
v |
3.0 or 5.0 |
|
Lifetime |
time |
≥107 |
|
Switch Time |
ms |
≤8 |
|
Transmission Power |
mw |
≤500 |
|
Operating |
℃ |
-5～+70 |
|
Storage Temperature |
℃ |
-40～+85 |
|
Relative Humidity |
% |
5~95 |
|
Weight |
g |
16 |
|
Dimension |
mm |
(L)28.5×(W)12.6×(H)8.7((±0.2mm) customization is available. |
Electric
|
Specifications |
Voltage |
Current |
Resistance |
|||
|
5V Latching |
4.5~5.5 |
36~44mA |
125Ω |
|||
|
5V Non-latching |
4.5~5.5 |
26~32mA |
175Ω |
|||
|
3V Latching |
2.7~3.3 |
54~66mA |
50Ω |
|||
|
3V Non-latching |
2.7~3.3 |
39~47mA |
70Ω |
|||

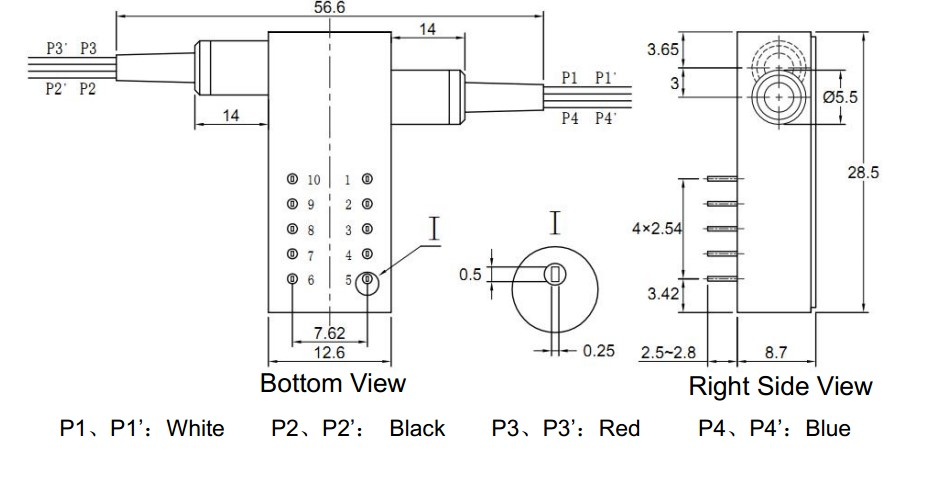

D2x2 SM Dimension
Pins
|
Control Model |
Optical Path |
Electric Drive |
Status Sensor |
||||||
|
D2×2 |
Light Pin |
1 |
5 |
6 |
10 |
2-3 |
3-4 |
7-8 |
8-9 |
|
Latching |
P1-P2， P3-P4； P1’-P2’,P3’-P4’ |
-- |
-- |
GND |
V+ |
Close |
Open |
Open |
Close |
|
P1-P4， P3-P2； P1’-P4’,P3’-P2’ |
V+ |
GND |
-- |
-- |
Open |
Close |
Close |
Open |
|
|
Non-latching |
P1-P2， P3-P4； P1’-P2’,P3’-P4’ |
-- |
-- |
-- |
-- |
Close |
Open |
Open |
Close |
|
P1-P4， P3-P2； P1’-P4’,P3’-P2’ |
V+ |
-- |
-- |
GND |
Open |
Close |
Close |
Open |
|
D2×2 MM Performance
|
Parameters |
FT -13-D2×2-M |
||
|
Wavelength Range |
nm |
850±40/ 1300±40 |
1470～1650 |
|
Testing Wavelength |
nm |
850/1300 |
1550 |
|
Insertion Loss |
dB |
Typ:1.0 Max:1.5 |
Typ:1.0 Max:1.5 |
|
Return Loss |
dB |
≥30 |
|
|
Crosstalk |
dB |
≥35 |
|
|
PDL |
dB |
≤0.05 |
|
|
WDL |
dB |
≤0.25 |
|
|
TDL |
dB |
≤0.25 |
|
|
Repeatability |
dB |
≤±0.02 |
|
|
Power supply |
v |
3.0 or 5.0 |
|
|
Lifetime |
times |
≥107 |
|
|
Switch Time |
ms |
≤8 |
|
|
Transmission Power |
mw |
≤500 |
|
|
Operation Temperature |
℃ |
-5～+70 |
|
|
Storage Temperature |
℃ |
-40～+85 |
|
|
Relative Humidity |
% |
5~95 |
|
|
Weight |
g |
16 |
|
|
Dimension |
mm |
(L)27.0×(W)12.6×(H)8.2(±0.2mm) customization is available. |
|
Electric
|
Specifications |
Voltage |
Current |
Resistance |
|||
|
5V Latching |
4.5~5.5 |
36~44mA |
125Ω |
|||
|
5V Non-latching |
4.5~5.5 |
26~32mA |
175Ω |
|||
|
3V Latching |
2.7~3.3 |
54~66mA |
50Ω |
|||
|
3V Non-latching |
2.7~3.3 |
39~47mA |
70Ω |
|||

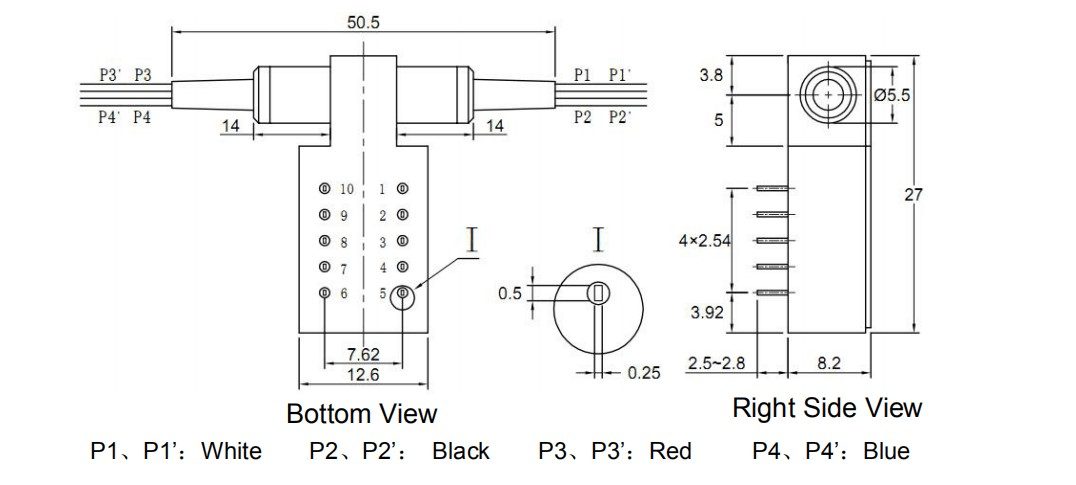

D2x2 MM Dimension
Pins
|
Control Model |
Optical Path |
Electric Drive |
Status Sensor |
||||||
|
D2×2 |
Light Pin |
1 |
5 |
6 |
10 |
2-3 |
3-4 |
7-8 |
8-9 |
|
Latching |
P1-P2， P3-P4； P1’-P2’,P3’-P4 |
-- |
-- |
GND |
V+ |
Close |
Open |
Open |
Close |
|
P1-P4， P3-P2； P1’-P4’,P3’-P2’ |
V+ |
GND |
-- |
-- |
Open |
Close |
Close |
Open |
|
|
Non-latching |
P1-P2， P3-P4； P1’-P2’,P3’-P4’ |
-- |
-- |
-- |
-- |
Close |
Open |
Open |
Close |
|
P1-P4， P3-P2； P1’-P4’,P3’-P2’ |
V+ |
-- |
-- |
GND |
Open |
Close |
Close |
Open |
|
Ordering Information
|
Mode |
Wavelength |
Voltage Type |
Control Model |
Fiber Type |
Fiber Diameter |
Fiber Length |
Connector |
|
S=SM |
85=850nm |
3=3V 5=5V |
L=Latching |
5=50/125 |
25=250um |
1=1m |
0=None |
北亿纤通 | F-tone Networks
企业邮箱：该邮件地址已受到反垃圾邮件插件保护。要显示它需要在浏览器中启用 JavaScript。
企业手机：19081343401
企业电话：028-85255257
企业传真：028-85977702
注：本产品有全国产化型号可选
本产品为FT-13系列光开关，仅展示部分参数，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
