PhotoRelays
Photorelays are the most relable,technicaly advanced logic-to-power interface devices.Their basic function is to take a low current signal from a microprocessor to control the switching of both AC and DC loads,while providing an isolation barier between logic andpower.While this function is common to all relays,Photorelays provide distinct advantages over their mechanical counterparts including:
● Longlife (No limit on mechanical and electrical lifetime)Bounce-free switching
● Higher speed and high frequency switching
● Higher sensitivity (less power consumption)
● Immunity to EMl or RFI
● No have voltaic arc,bounce,and noise More
● resistant to vibration and impact AC or DC load
● switching
● Small package size

Applications
● Telecom/Datacom switching
● Multiplexers
● Meter reading systems
● Data acquisition
● Medical equipment
● Battery monitoring
● I/O Sub-Systems
● Robotics
● Aerospace
● Home/Safety security systems
● Process Control
● Energy Management
● Reed Relay EMR Replacement
● Programmable Controllers

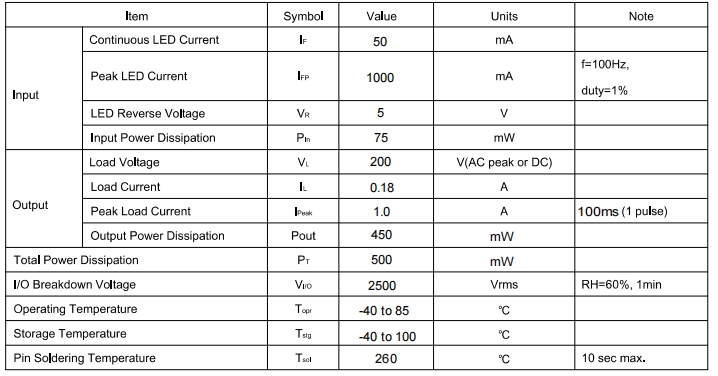

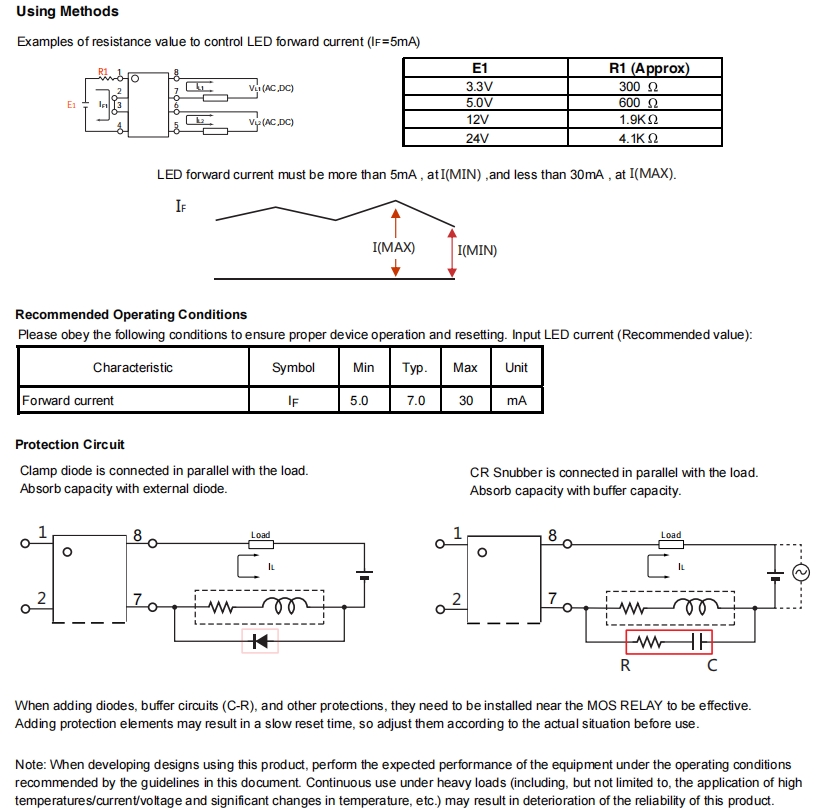

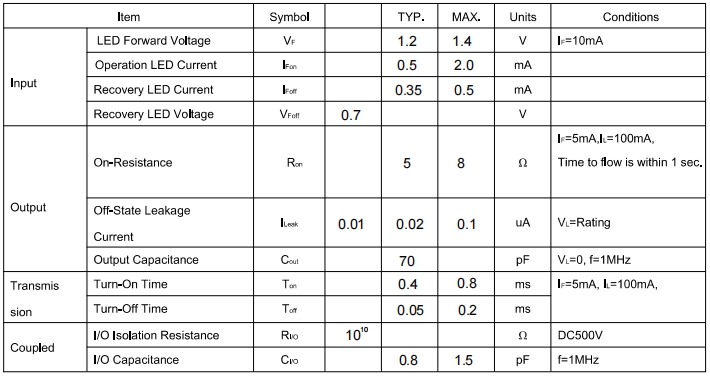

Absolute Maximum Ratings (Ta = 25°C)Electrical Characteristics (Ta = 25°C)Please obey the following conditions to ensure proper device operation and resetting. Input LED current (Recommended value): IF ≥5mA and ≤30mA

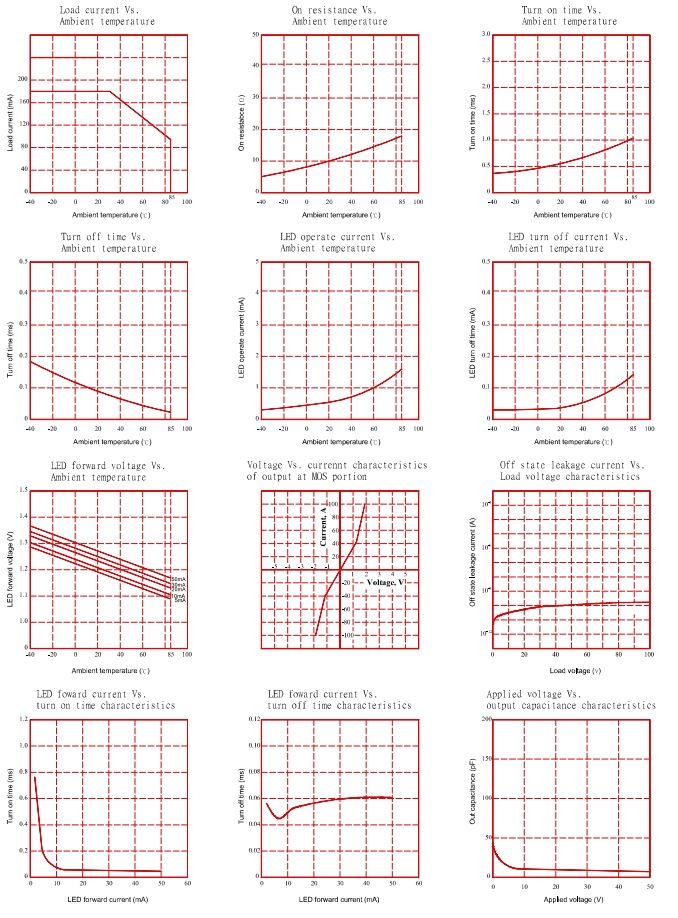

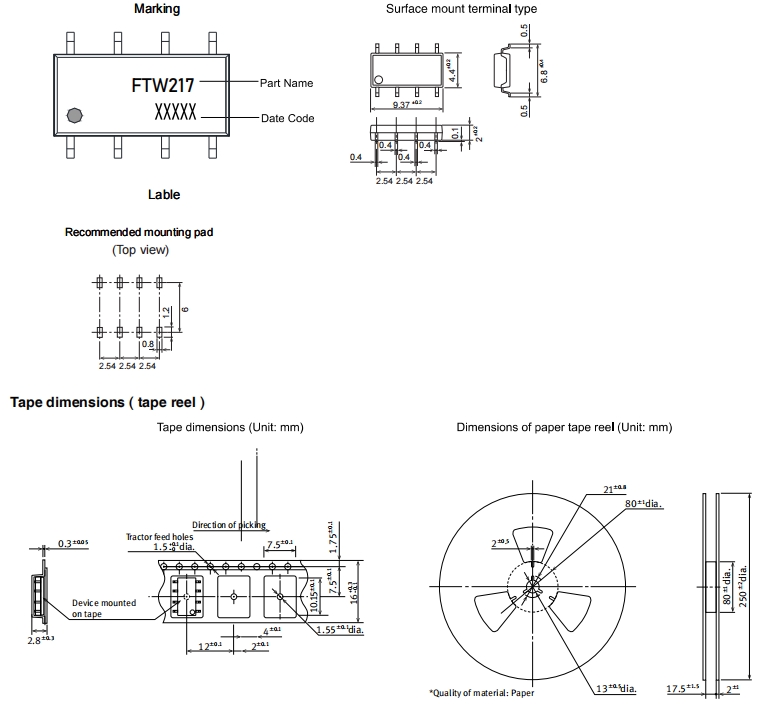

Engineering DataDimensions and SOP-8 Package

订购信息

北亿纤通 | F-tone Networks

企业邮箱：该邮件地址已受到反垃圾邮件插件保护。要显示它需要在浏览器中启用 JavaScript。
企业手机：19081343401
企业电话：028-85255257
企业传真：028-85977702

注：本产品有全国产化型号可选
本产品为FT-AN系列，仅展示部分参数，如有需要，请您联系我们。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
