产品特性
- 更紧凑的结构设计（模块高度仅8mm）
- 带尾纤光接口/法兰接口等形式
- 引脚及安装尺寸全面兼容STRATOS产品
- 全金属外壳/工业级温度范围，采用抗振动设计
- +3.3V单电源
- 适应于高速信号完整性的表贴I/O引脚
- 具备接收数据信号检测功能
产品应用
- MINISFF尾纤型系列微型光收发模块提供可靠高效的数字光纤通信应用。传输速率可达10Gbps
- 数字雷达阵列
- 高可靠高数据率点对点光纤通信
- 信号处理中心高密度信号互联
订购信息
|
型号 |
波长(nm) |
速率 |
传数距离(Km) |
数字诊断 |
x |
-xx |
|
FTMF-B1332-02x-xx |
tx1310/rx1550 |
3.2G |
2 |
N |
空:商业级 I:工业级 |
GC:全国产 空：非全国产 |
|
FTMF-B1532-02x-xx |
tx1550/rx1310 |
N |
||||
|
FTMF-B2760-02x-xx |
tx1270/rx1330 |
6G |
2 |
N |
||
|
FTMF-B3330-02x-xx |
tx1330/rx1270 |
N |
||||
|
FTMF-B271X-10x-xx |
tx1270/rx1330 |
10G |
10 |
N |
||
|
FTMF-B331X-10x-xx |
tx1330/rx1270 |
N |
||||
|
FTMF-1560-02x-xx |
1550 |
6G |
2 |
N |
备注：尾纤长度可定制。

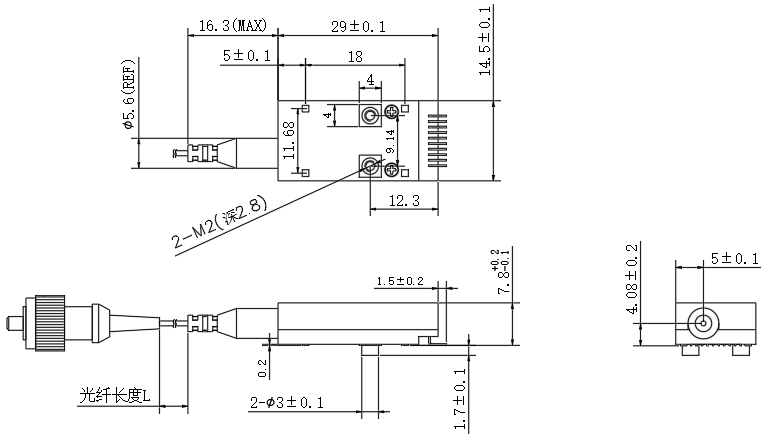

外形尺寸(单位mm)
备注： 未注公差：± 0.25mm
北亿纤通 | F-tone Networks
企业邮箱：该邮件地址已受到反垃圾邮件插件保护。要显示它需要在浏览器中启用 JavaScript。
企业手机：19081343401
企业电话：028-85255257
企业传真：028-85977702
注：本产品有全国产化型号可选
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
