产品特性

  • 工业级温度范围,采用抗振动设计
  • 引脚及安装尺寸全面兼容STRATOS产品
  • 更紧凑的结构设计
  • +3.3V单电源
  • 适应于高速信号完整性的表贴I/O引脚
  • 具备接收数据信号检测功能 (除FTMF-851X-02Dx-xx外)

产品应用
MINISFF插拔型系列微型光收发模块适用于高可靠高效的数字光纤通信应用 ; 传输速率可达10Gbps,广泛应用于小型化、紧凑设计的数字光通信系统

订购信息

型号

波长(nm)

速率

传数距离(Km)

数字诊断

x

-xx

FTMF-8512-02x-xx

850

1.25G

0.5

N

空:商业级

I:工业级

GC:全国产

空:非全国产

FTMF-8542-02x-xx

4.25G

0.3

N

FTMF-8562-02x-xx

6.25G

0.3

N

FTMF-851X-02x-xx

10G

0.3

N

FTMF-851X-02Dx-xx

10G

0.3

Y

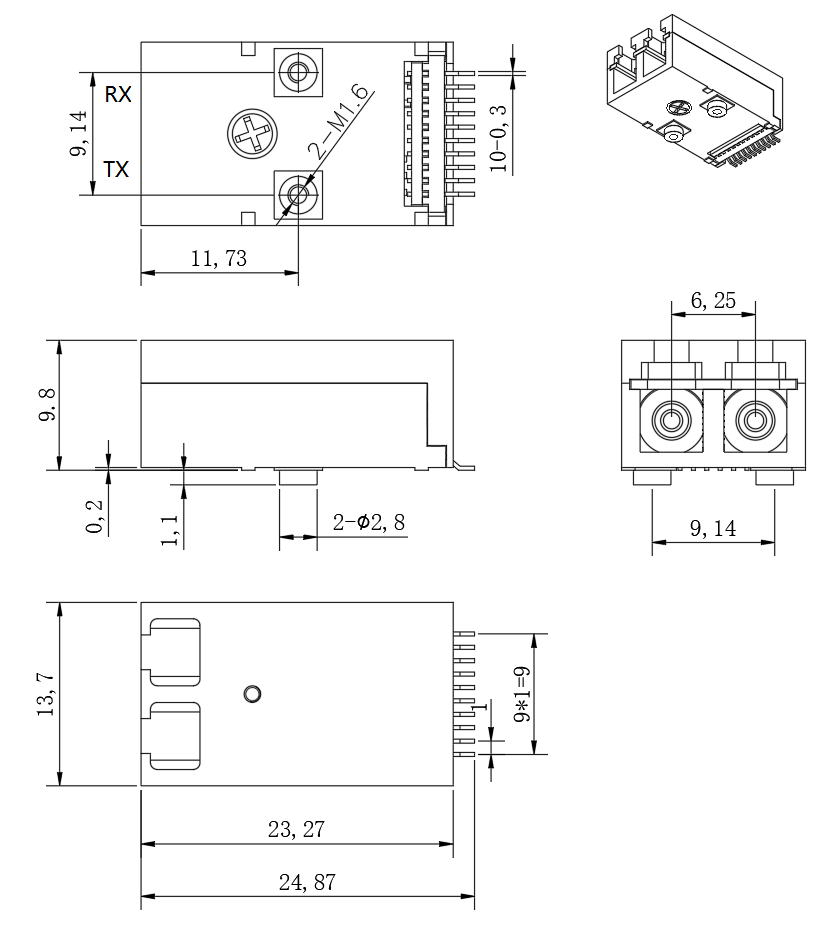

外形尺寸(单位mm)
4

备注: 未注公差:± 0.25mm













北亿纤通 | F-tone Networks

企业邮箱:该邮件地址已受到反垃圾邮件插件保护。要显示它需要在浏览器中启用 JavaScript。
企业手机:19081343401
企业电话:028-85255257
企业传真:028-85977702

注:本产品有全国产化型号可选

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
