产品应用
● 高密度高速互连
● 雷达与处理互联
● 甚短距离的高速数据通信
● 服务器与存储器阵列互联

产品特点
● 3.3V直流供电,低功耗
● 独立的通道失效监控
● 4路并行光发射,4路并行光接收
● 100pin LGA弹片压接式电连接器
● 12芯MT尾纤光接口
● 高速数据差分信号I/O口兼容,CML/LVDS/PECL电平
● 带有I2C通信监控功能
● 外形尺寸为:16.4mm×16.4mm×4mm
● 50UM多模光纤
● 单通道传输速率为25.78125Gbps
● 传输距离:该邮件地址已受到反垃圾邮件插件保护。要显示它需要在浏览器中启用 JavaScript。,0M3/该邮件地址已受到反垃圾邮件插件保护。要显示它需要在浏览器中启用 JavaScript。,OM4
● 850NM VCSEL/PD阵列技术
● 单通道速率达10.3125Gbps
● 工作温度:工业级:-40°C~+85°C 普军级:-55℃~+85°C

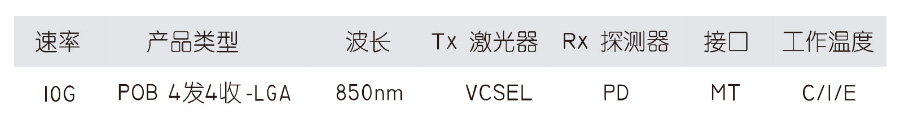

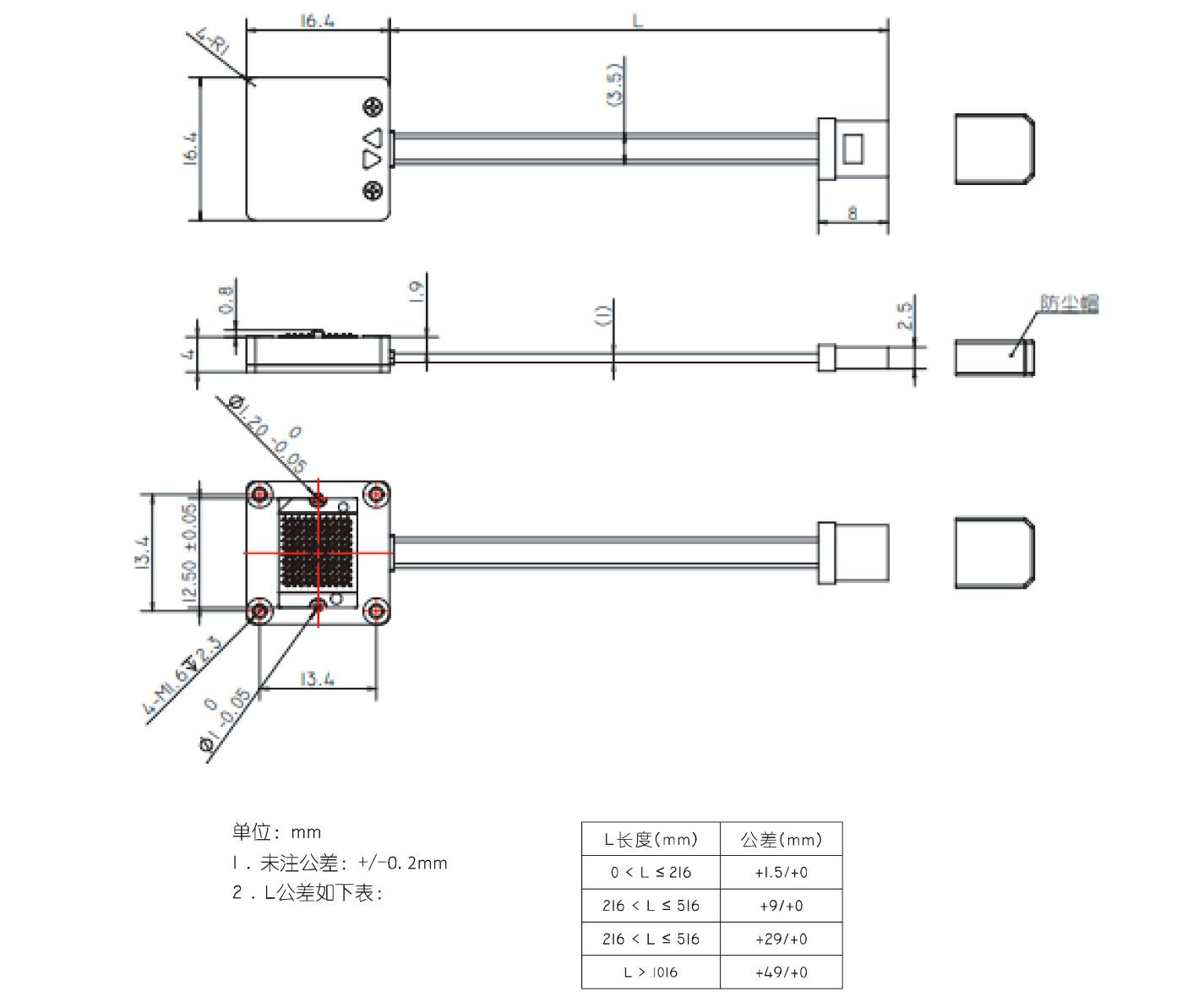

主要技术参数POB 1封装尺寸POB 2











北亿纤通 | F-tone Networks
企业邮箱：该邮件地址已受到反垃圾邮件插件保护。要显示它需要在浏览器中启用 JavaScript。
企业手机：19081343401
企业电话：028-85255257
企业传真：028-85977702

注：本产品有全国产化型号可选
本产品为FT-89系列，仅展示部分参数，如有需要，请联系我们。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
