FEATURES
● Supports 0.3 A,0.6 A,0.9 A and 1.2 AON-state RMS currents.
● Handles both 100 and 200 Vrms loads.
● High dielectric strength:5,000 Vrms

TYPICAL APPLICATIONS
● Home appliances market:air conditioner,microwave oven,washing machine,personal hygiene system,refrigerator,fan heater,inductive heating cooker,rice cooker and humidifier,etc.
● Industrial equipment market

Absolute maximum ratings(Ambient temperature:25℃)

Item

Symbol

FTH0213, FTH0223

FTH1213,  FTH1223

FTH2213,  FTH2223

FTH3213, FTH3223

Remarks

Input

LED forward current

IF

50 mA

LED reverse voltage

VR

6 V

Peak forward current

IFP

1 A

f = 100 Hz,

Duty Ratio = 0.1%

Output

Repetitive peak OFF-state voltage

VDRM

600 V

ON-state RMS current

IT (RMS)

0.3 A

0.6 A

0.9 A

1.2 A

Non-repetitive surge current

ITSM

3 A

6 A

9 A

12 A

60 Hz, 1 cycle

I/O isolation voltage

Viso

5,000 Vrms

Operating temperature

Topr

–30 to +85°C –22 to +185°F

Non-condensing at low temperatures

Storage temperature

Tstg

–40 to +125°C –40 to +257°F



Characteristics (Ambient temperature:25℃)

Ite

Symbol

FTH0213, FTH1213, FTH2213,FTH3213

FTH0223,FTH1223, FTH2223, FTH3223

Remarks

Input

LED dropout voltage

Typical

VF

1.21 V

IF  = 20 mA

Maximum

1.3 V

LED reverse current

Typical

IR

—

VR  = 6 V

Maximum

10 μA

Output

Peak OFF-state current

Typical

IDRM

—

IF  = 0 mA

VDRM  = 600 V

Maximum

100 μA

Peak ON-state voltage

Typical

VTM

—

IF  = 10 mA ITM  = Max.

Maximum

2.5 V

Holding current

Typical

IH

—

Maximum

25 mA

Critical rate of rise of OFF-state voltage

Minimum

dv/dt

200 V/μs

VDRM  = 600 V ×1/√2

Transfer charac-  teristics

Trigger LED current

Maximum

IFT

10 mA

VD  = 6 V

RL  = 100 Ω

Zero-cross voltage

Maximum

VZC

50 V

—

IF  = 10 mA

Turn on time*1

Maximum

TON

100 μs

IF  = 20 mA VD  = 6 V

RL  = 100 Ω

I/O isolation resistance

Minimum

Riso

50 GΩ

500 V DC

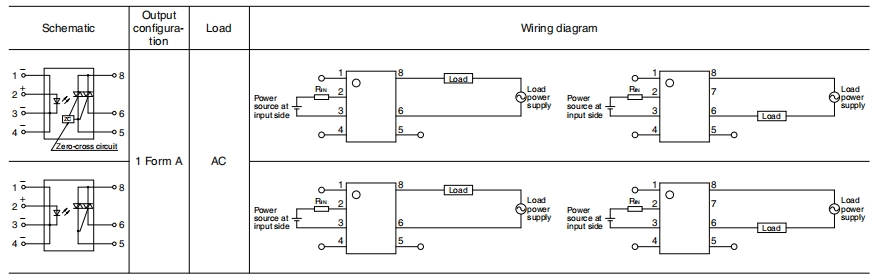

SCHEMATIC AND WIRING DIAGRAMS

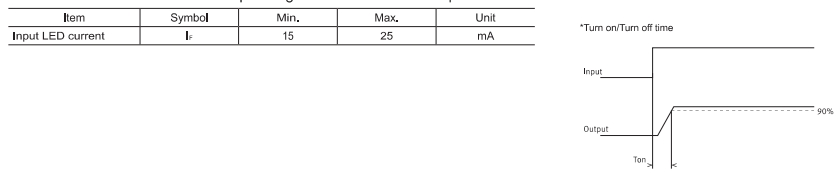

42Please obey the following conditions to ensure proper device operation and resetting. Input LED current (Recommended value): IF ≥5mA and ≤30mA

Recommended operating conditions
Please use under recommended operatingconditions to obtain expected characteristics.43

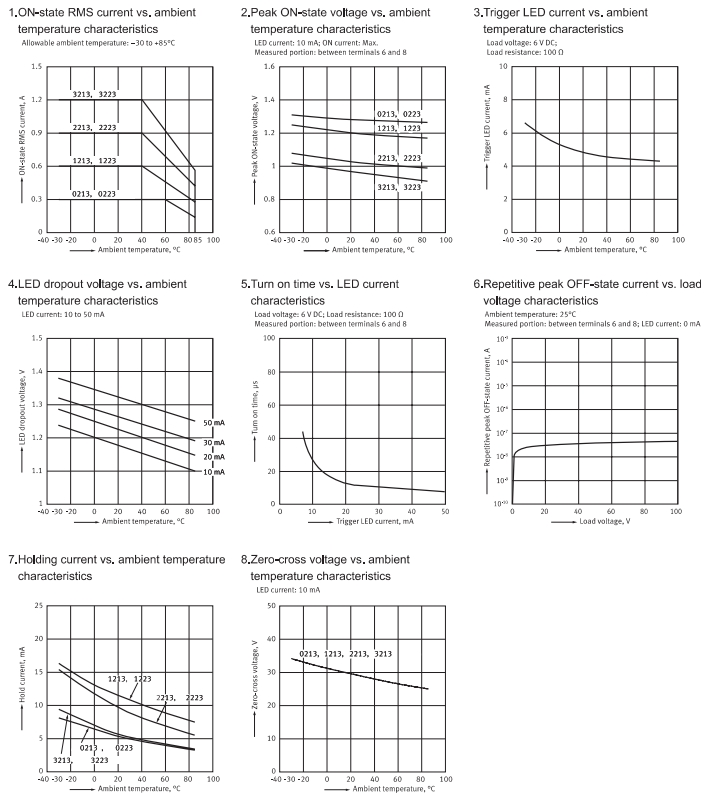

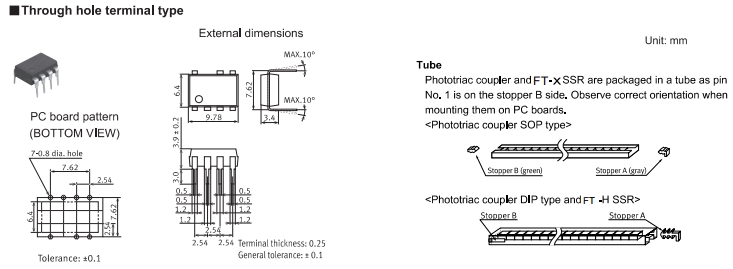

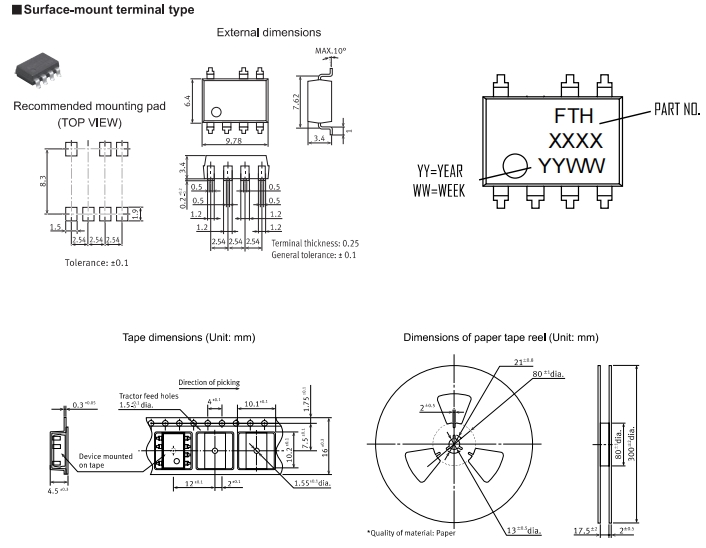

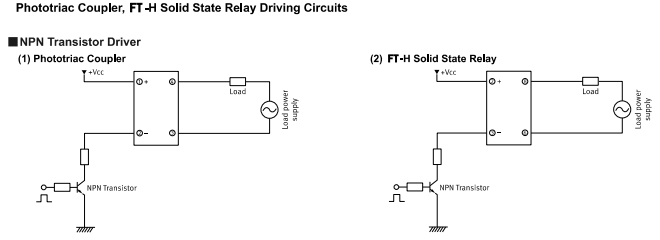

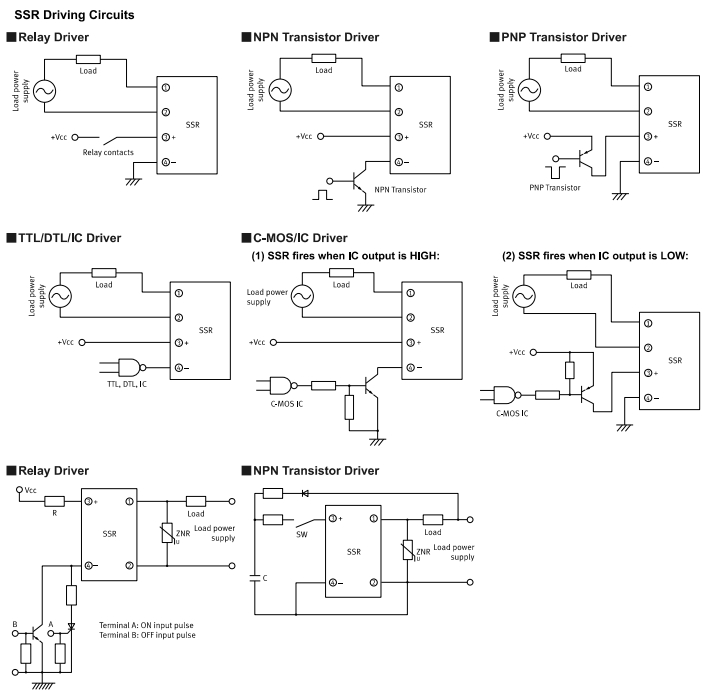

REFERENCE DATA44DIMENSIONS45464748

订购信息

Type

Output rating*

Type

Part No.

Packing quantity

Through hole terminal

Surface-mount terminal

Repetitive    peak OFF- state voltage

ON-state RMS current

DIP7

SMD7

Tube

Tape and reel

AC  type

600 V

0.3A

Zero-cross

FTH0213E

FTH0213EH

1 tube contains

50 pcs.

1 batch contains

500 pcs.

1,000 pcs.

0.6A

FTH1213E

FTH1213EH

0.9A

FTH2213E

FTH2213EH

1.2A

FTH3213E

FTH3213EH

0.3A

Random

FTH0223E

FTH0223EH

0.6A

FTH1223E

FTH1223EH

0.9A

FTH2223E

FTH2223EH

1.2A

FTH3223E

FTH3223EH

Note：Indicate the repetitive peak OFF-state voltage and ON-state RMS current: peak AC.
