Features
● Low driver power requirements (TTL/CMOS Compatible)
● No moving parts
● High reliability
● Arc-Free with no snubbing circuits
● 3750Vrms Input/Output isolation
Applications
● Telecommunications (PC, Electronic notepad)
● Measuring and Testing equipment
● Industrial control
● Security equipments
● High speed inspection machine
Absolute Maximum Ratings (Ambient Temperature: 25℃)
|
Item |
Symbol |
Value |
Units |
Note |
|
|
Input |
Continuous LED Current |
IF |
50 |
mA |
|
|
Peak LED Current |
IFP |
1000 |
mA |
f=100Hz, duty=1% |
|
|
LED Reverse Voltage |
VR |
5 |
V |
||
|
Input Power Dissipation |
PIn |
75 |
mW |
||
|
Output |
Load Voltage |
VL |
60 |
V(AC peak or DC) |
|
|
Load Current |
IL |
1.1 |
A |
||
|
Peak Load Current |
IPeak |
2.5 |
A |
100ms(1 pulse) |
|
|
Output Power Dissipation |
Pout |
450 |
mW |
||
|
Total Power Dissipation |
PT |
500 |
mW |
||
|
I/O Breakdown Voltage |
VI/O |
3750 |
Vrms |
RH=60%, 1min |
|
|
Operating Temperature |
TOpr |
-40 to +85 |
℃ |
||
|
Storage Temperature |
TStg |
-40 to +100 |
℃ |
||
|
Pin Soldering Temperature |
TSol |
260 |
℃ |
10 sec max. |
|
Electrical Specifications (Ambient Temperature: 25℃)
|
Item |
Symbol |
MIN. |
TYP. |
MAX. |
Units |
Conditions |
|
|
Input |
LED Forward Voltage |
VF |
1.2 |
1.4 |
V |
IF=10mA |
|
|
Operation LED Current |
IF On |
0.5 |
3.0 |
mA |
|||
|
Recovery LED Current |
IF Off |
0.35 |
0.5 |
mA |
|||
|
Recovery LED Voltage |
VF Off |
0.5 |
V |
||||
|
Output |
On-Resistance |
ROn |
0.27 |
0.7 |
Ω |
IF=5mA,IL=100mA, Time to flow is within 1 sec. |
|
|
Off-State Leakage Current |
ILeak |
1 |
uA |
VL=Rating |
|||
|
Output Capacitance |
COut |
115 |
pF |
VL=0, f=1MHz |
|||
|
Transmis sion |
Turn-On Time |
TOn |
1.5 |
5.0 |
ms |
IF=5mA, IL=100mA, |
|
|
Turn-Off Time |
TOff |
0.05 |
2.0 |
ms |
|||
|
Coupled |
I/O Isolation Resistance |
RI/O |
1010 |
Ω |
DC500V |
||
|
I/O Capacitance |
CI/O |
0.8 |
1.5 |
pF |
f=1MHz |
||

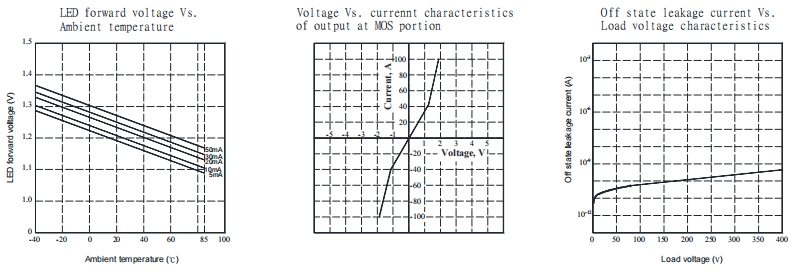

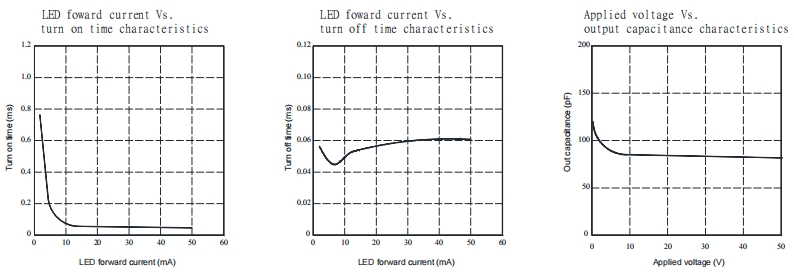

Reference Data
Dimensions

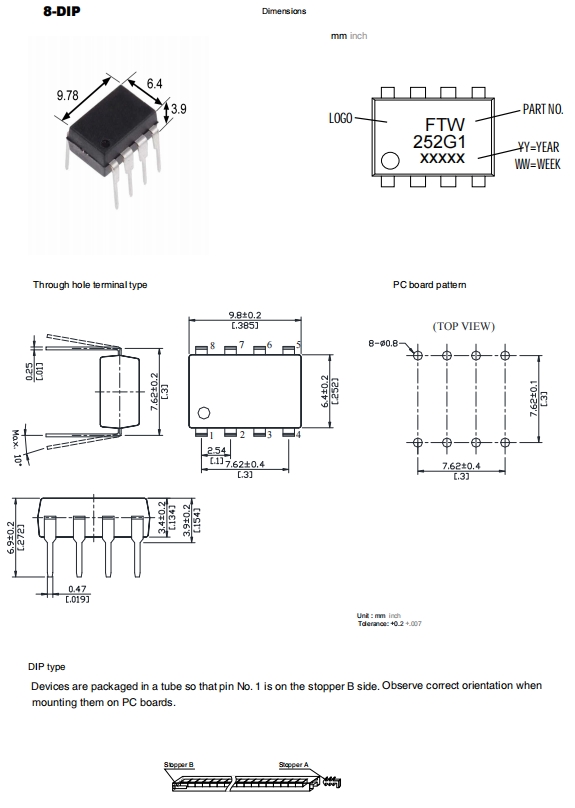

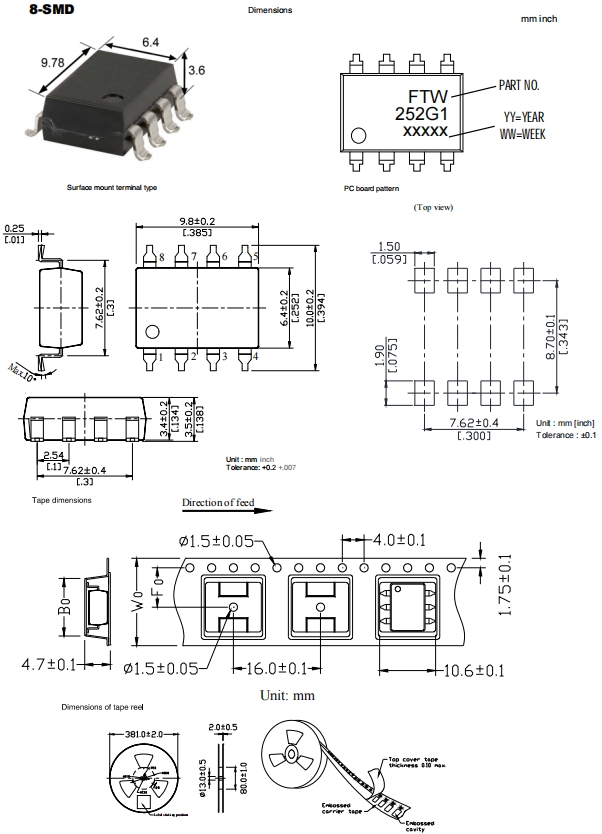

Outline Dimensions
订购信息
|
Category |
Output rating |
Package |
Part No. | Packing quantity | |
| Load voltage | Load current | ||||
|
AC/DC |
60V |
1.1A |
DIP8 |
FTW252G1E |
50pcs/tube |
|
SMD8 |
FTW252G1EH |
1000pcs/1reel |
|||
北亿纤通 | F-tone Networks
企业邮箱：该邮件地址已受到反垃圾邮件插件保护。要显示它需要在浏览器中启用 JavaScript。
企业手机：19081343401
企业电话：028-85255257
企业传真：028-85977702
注：本产品有全国产化型号可选
本产品为FT-AN系列，仅展示部分参数，如有需要，请您联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
