Description
F-tone Networks’s FTQD-2H-LR4xx 200GE QSFP-DD Optical Transceiver modules are designed for using in 200Gigabit Ethernet 10km links over SMF single-mode fiber. They are compliant with the QSFP-DD MSA and with IEEE 802.3cn 200GBASE-LR4 specification. Digital diagnostics functions are available via the I2C interface as specified by CMIS V4.0. These modules can convert 8 channels of 25Gbps (NRZ) electrical input data to 4 channels of 50Gbps (PAM4) optical signal, and also can convert 4 channels of 50Gbps (PAM4) optical signal to 8 channels of 25Gbps (NRZ) electrical output data. And these modules incorporate F-tone Networks Technologies proven circuit and EML technology to provide reliable long life, high performance, and consistent service.
Features
- 4125Gbps(26.5625GBd) PAM4 LWDM optics architecture
- 878125 or 26.5625GbpsElectrical Interface (200GAUI-8)
- 4x53Gbps PAM4 optical transmitter and receiver
- 4channels LWDM cooled EMLtransmitter
- 4channels PIN photo detector array receiver
- Internal 8:4Gearbox DSP with KP FEC (optional)
- Power consumption <9W
- Hot Pluggable QSFP DD form factor and Compliant with CMIS 4.0
- Up to 10km transmission over652 SMF
- DuplexLC connector receptacle
- Built-in digital diagnostic functions
- Case temperature range of 0 ℃ to 70 ℃/-40 ℃ to 85 ℃
- 3V power supply voltage
- RoHS compliant (lead free)
Applications
- 200GBASE-LR4 Ethernet
- Datacenter
Absolute Maximum Ratings
|
Parameter |
Symbol |
Min |
Max |
Unit |
|
Supply Voltage |
Vcc |
-0.3 |
3.6 |
V |
|
Storage Temperature |
Tst |
-20 |
85 |
ºC |
|
Case Operating Temperature |
Top |
0 |
70 |
ºC |
|
Humidity(non-condensing) |
Rh |
5 |
95 |
% |
|
Damage threshold,each lane |
THd |
6.3 |
dBm |
Recommended Operating Conditions
|
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
|
Supply Voltage |
Vcc |
3.13 |
3.3 |
3.47 |
V |
|
Operating Case temperature |
Tca |
0 |
70 |
ºC |
|
|
Signal Rate per Electrical Channel (8 x 25Gor26G) |
- |
25.78125 or 26.5625 |
- |
Gbps |
|
|
Signal Rate per Optical Channel (4 x 53G) |
- |
53.125 |
- |
Gbps |
|
|
Humidity |
Rh |
5 |
85 |
% |
|
|
Power Dissipation |
Pm |
9 |
W |
Electrical Specifications
|
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
|
Transmitter |
|||||
|
Differential voltage pk-pk |
Vin, pp |
900 |
mV |
||
|
Common mode noise |
RMS |
17.5 |
mV |
||
|
Differential termination resistance mismatch |
10 |
% |
|||
|
Transition time |
Trise/Tfall |
10 |
ps |
||
|
Common mode voltage |
Vcm |
-0.3 |
2.8 |
V |
|
|
Eye width at 10-15 probability |
EW15 |
0.46 |
UI |
||
|
Eye height at at 10-15 probability |
Limit 1 |
95 |
mV |
||
|
Limit 2 |
80 |
mV |
|||
|
Receiver |
|||||
|
Differential voltage pk-pk |
Vout, pp |
900 |
mV |
||
|
Common mode voltage |
Vcm |
-0.35 |
2.8 |
V |
|
|
Common mode noise |
RMS |
17.5 |
mV |
||
|
Transition time |
Trise/Tfall |
9.5 |
ps |
||
|
Vertical eye closure |
VEC |
5.5 |
dB |
||
|
Eye width at 10-15 probability |
EW15 |
0.57 |
UI |
||
|
Eye height at at 10-15 probability |
EH15 |
228 |
mV |
||
Note：
1. Differential input voltage amplitude is measured between TxnP and TxnN.
2. Differential output voltage amplitude is measured between RxnP and RxnN.
Optical Characteristics
Table 3 - Optical Characteristics
|
Parameters |
Min |
Type |
Max |
Unit |
Notes |
|
Transmitter |
|||||
|
Signaling speed per lane |
26.5625 ± 100 ppm |
GBd |
|||
|
Transmit wavelengths |
1294.53 |
1296.59 |
nm |
||
|
1299.02 |
1301.09 |
||||
|
1303.54 |
1305.63 |
||||
|
1308.09 |
1310.19 |
||||
|
Total average launch power |
11.3 |
dBm |
|||
|
Average launch power, each lane |
-3.4 |
5.3 |
dBm |
||
|
Optical modulation amplitude (OMA), each lane |
-0.4 |
5.1 |
dBm |
||
|
Extinction ratio (ER) |
3.5 |
dB |
|||
|
Side-mode suppression ratio (SMSR) |
30 |
dB |
|||
|
Launch power in OMA minus TDECQ, each lane For ER<4.5dB |
-1.8 |
dBm |
|||
|
Transmitter and dispersion eye closure for PAM4 (TDECQ), each lane |
3.2 |
dB |
|||
|
Average launch power of OFF transmitter, each lane (max) |
-30 |
dBm |
|||
|
Parameters |
Min |
Type |
Max |
Unit |
Notes |
|
RIN15.6OMA |
-132 |
dB/Hz |
|||
|
Optical return loss tolerance |
15.6 |
dB |
|||
|
Transmitter reflectance |
-26 |
dB |
|||
|
Receiver |
|||||
|
Signaling speed per lane |
26.5625 ± 100 ppm |
GBd |
|||
|
Receive wavelengths |
1294.53 |
1296.59 |
nm |
||
|
1299.02 |
1301.09 |
||||
|
1303.54 |
1305.63 |
||||
|
1308.09 |
1310.19 |
||||
|
Average receiver power, each lane |
-9.7 |
5.3 |
dBm |
||
|
Receiver power, each lane (OMA) |
5.1 |
dBm |
|||
|
Difference in receive power between any two lanes (OMA) |
4.2 |
dB |
|||
|
Damage threshold, each lane |
6.3 |
dBm |
|||
|
Receiver sensitivity (OMA), each lane |
RS |
dBm |
1 |
||
|
LOS assert |
-25.7 |
dBm |
|||
|
LOS deassert |
-11.7 |
dBm |
|||
|
LOS hysteresis |
0.5 |
dB |
|||
|
Receiver reflectance |
-26 |
dB |
|||
Note： RS=max (-7.2, SECQ -8.6) dBm, BER@2E 4, Pre-FEC

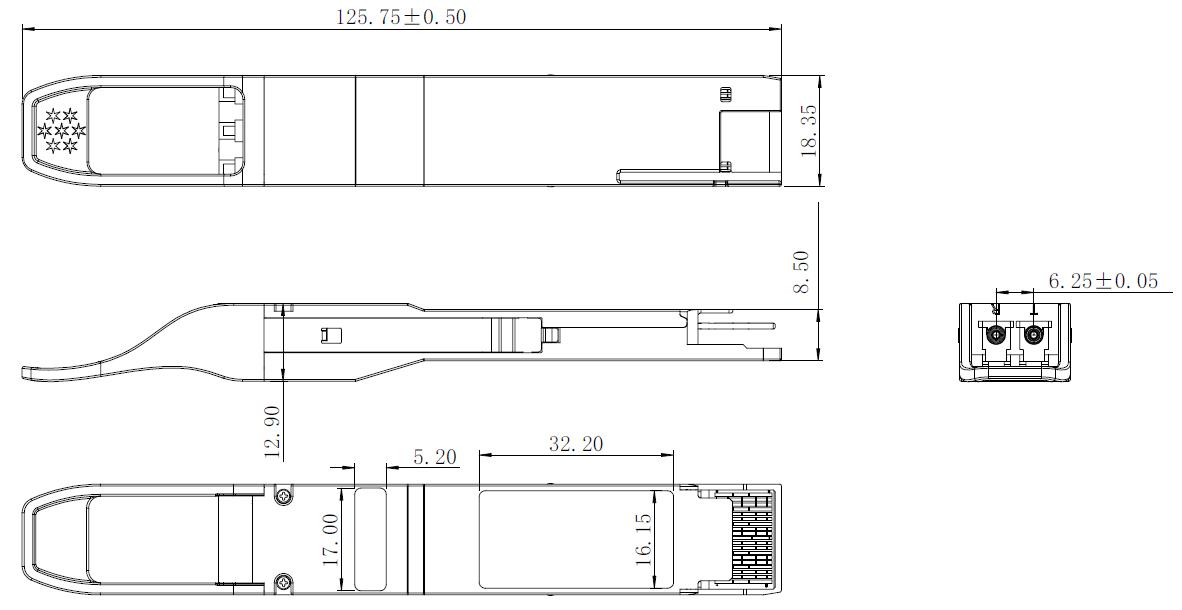

Mechanical Dimensions
Ordering Information
|
Part Number |
Product Description |
|
FTQD-2H-LR4 |
QSFP DD, 200G, 10km on SMF(LWDM),with DSP Power consumption <9W, duplex LC connector,0 ℃ ~+ 70 ℃ |
|
FTQD-2H-LR4I |
QSFP DD, 200G, 10km on SMF(LWDM),with DSP Power consumption <9W, duplex LC connector,-40 ℃ ~+85 ℃ |
北亿纤通 | F-tone Networks
企业邮箱： 该邮件地址已受到反垃圾邮件插件保护。要显示它需要在浏览器中启用 JavaScript。
企业手机：19081343401
企业电话：028-85255257
企业传真：028-85977702
注：本产品有全国产化型号可选
本产品为QSFP-DD系列光模块，仅展示部分参数，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
