Description
The F-tone Networks 100GBASE-ER4 Lite & OTU4 40km QSFP28 optical receiver (FTQ2-HG-ER4Rxx) is designed for use in 100-Gigabit Ethernet and OTN links for Deep Packet Inspection (DPI) applications up to 30km without FEC or 40km with FEC on Single Mode Fiber (SMF). It is compliant with the QSFP28 MSA, 4WDM-40 MSA, IEEE 802.3ba 100GBASE-ER4 and IEEE 802.3bm CAUI-4, and OTU4 standards. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP28 MSA. It de-multiplexes a 111.8Gb/s optical input into 4 channels of LAN-WDM optical signals and then converts them to 4 output channels of electrical data. The central wavelengths of the 4 LAN-WDM channels are 1295.56nm, 1300.05nm, 1304.58nm and 1309.14nm as members of the LAN-WDM wavelength grid defined in IEEE 802.3ba.

Features

  • Hot-pluggable QSFP28form factor
  • Receiver only optical module
  • Supports 111.8Gb/s aggregate bit rate
  • 4channels APDROSA without TOSA
  • Internal CDR circuits on receiver channels
  • 5W maximum power dissipation
  • Maximum link length of 30km on SMFwithout FEC
  • Maximum link length of 40km on SMFwith FEC
  • Duplex LCreceptacle
  • Single 3.3V power supply
  • RoHS-6 compliant(lead free)
  • Case operating temperature
    Commercial: 0 ~ +70℃
    Industrial: -40 ~ +85℃

Applications

  • 100GBASE-ER4 Lite 100GEthernet
  • 100GE 4WDM-40 applications
  • OTN OTU4 applications
  • DPI applications

Absolute Maximum Ratings

Parameter

Symbol

Min

Max

Unit

Supply Voltage

Vcc

-0.3

3.6

V

Input Voltage

Vin

-0.3

Vcc+0.3

V

Storage Temperature

Ts

-20

85

ºC

Case Operating Temperature

Tc

0

70

ºC

Humidity (non-condensing)

Rh

5

85

%

Damage Threshold (each lane)

THd

5.5

dBm

Recommended Operating Conditions

Parameter

Symbol

Min

Typical

Max

Unit

Supply Voltage

Vcc

3.13

3.3

3.47

V

Operating Case Temperature

Tc

0

70

ºC

Data Rate Per Lane

fd

25.78125

27.95

Gb/s

Humidity

Rh

5

85

%

Power Dissipation

Pm

2.5

W

Link Distance with G.652

D

0.002

40

km



Electrical Specifications

Parameter

Symbol

Min

Typical

Max

Unit

Supply Current

Icc

1.27

A

Single-ended Output Voltage

-0.3

4.0

V

AC Common Mode Output

7.5

mV

Differential Output Voltage Swing

Vout

300

850

mVp-p

Differential Output Impedance

Zout

90

100

110

Ohm

Optical Characteristics

Parameter

Symbol

Min

Typical

Max

Unit

Lane Wavelength

L0

1294.53

1295.56

1296.59

nm

L1

1299.02

1300.05

1301.09

nm

L2

1303.54

1304.58

1305.63

nm

L3

1308.09

1309.14

1310.19

nm

Damage Threshold1 (each lane)

THd

-6

dBm

Average Receive Power (each lane)

-20.5

-7

dBm

Receive Power (OMA) (each lane)

-7

dBm

Receiver Sensitivity (OMA) (each lane)

(BER = 5×10-5) @100GE

SEN1

-18.5

dBm

Receiver Sensitivity (OMA) (each lane)(BER = 5×10-12) @100GE

SEN2

-15

dBm

Receiver Sensitivity (OMA) (each lane)(BER = 5×10-5) @OTU4

SEN4

-18

dBm

Receiver Sensitivity (OMA) (each lane)(BER = 5×10-12) @OTU4

SEN5

-14

dBm

Stressed Receiver Sensitivity (OMA)2(each lane) (BER= 5×10-5)

SEN3

-16

dBm

Difference in Receive Power between any Two Lanes (OMA)

Prx,diff

3.6

dB

LOS Assert

-26

dBm

LOS De-Assert – OMA

-24

dBm

LOS Hysteresis

0.5

dB

Receiver Electrical 3 dB upper Cutoff Frequency (each Lane)

Fc

31

GHz

Conditions of Stress Receiver Sensitivity Test3

Vertical Eye Closure Penalty3

VECP

2.5

dB

Stressed Eye J2 Jitter

J2

0.33

UI

Stressed Eye J4 Jitter

J4

0.48

UI

Note：

  • The receiver shall be able to tolerate, without damage, continuous exposure to a modulated optical input signal having this power level on one lane. The receiver does not have to operate correctly at this input power.
  • Measured with conformance test signal at receiver input for BER=5×10-5@25.78125Gb/
  • Vertical eye closure penalty and stressed eye jitter are test conditions for measuring stressed receiver sensitivity. They are not characteristics of the receiver.

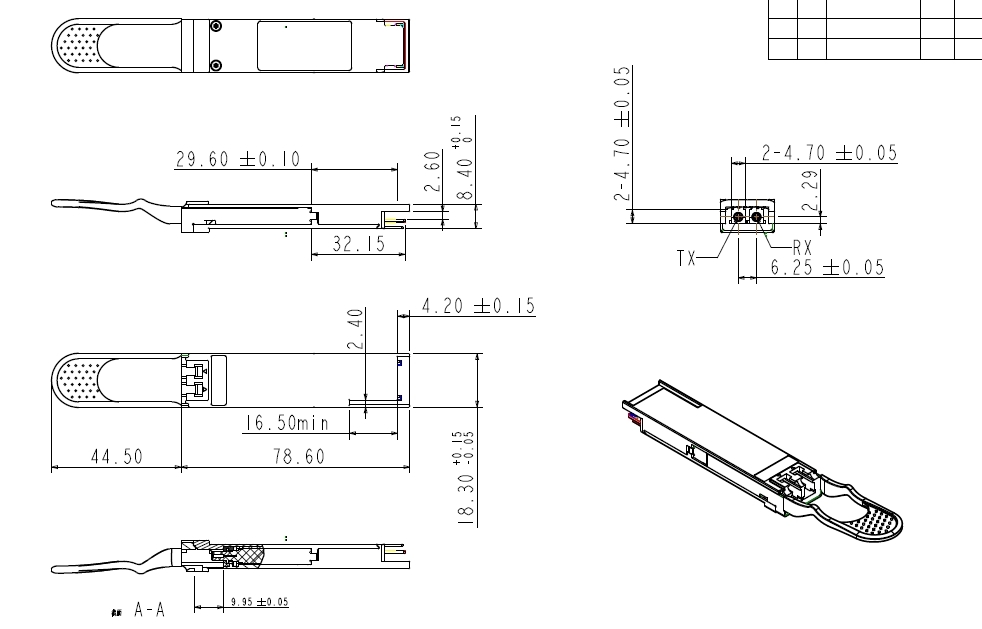

Mechanical Dimensions25.3.13 5

Ordering Information

Product Description

Part Number

QSFP28 ER4 Lite Receiver, 111.8Gb/s, 1310nm, 40km with FEC, SMF, LC,0ºC ~ +70ºC

FTQ2-HG-ER4R

QSFP28 ER4 Lite Receiver, 111.8Gb/s, 1310nm, 40km with FEC, SMF, LC,-40ºC ~ +85ºC

FTQ2-HG-ER4RI













北亿纤通 | F-tone Networks

企业邮箱： 该邮件地址已受到反垃圾邮件插件保护。要显示它需要在浏览器中启用 JavaScript。
企业手机：19081343401
企业电话：028-85255257
企业传真：028-85977702

注：本产品有全国产化型号可选
本产品为QSFP28系列光模块，仅展示部分参数，如有需要，请联系我们。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
