Description
F-tone Networkst’s FTQ5-2H-DR4 200GE QSFP56 Optical Transceiver modules are designed for use in 200 Gigabit Ethernet links over parallel single-mode fiber(1310nm).These modules can convert 4 channels of 50Gbps (PAM4) electrical input data to 4 channels of 50Gbps (PAM4) optical signal, and also can convert 4 channels of 50Gbps (PAM4) optical signal to 4 channels of 50Gbps (PAM4) electrical output data. They are designed to operate over single-mode fiber systems using a nominal wavelength of 1310nm.
They are compliant with the QSFP56 MSA and with IEEE 802.3 200GBASE DR4 and CEI-56G-VSR-PAM4 standards. Digital diagnostics functions are available via the I2C interface as specified by CMIS4.0. The transceiver is RoHS 2.0 compliant and lead-free per Directive 2011/65/EU.
Features
● Hot-pluggable QSFP56 form factor
● Built-in 200G PAM4 DSP
● Supports 212.5Gb/s aggregate bit rates
● Low power dissipation < 6W
● Commercial case temperature range of 0°C to 70°C
● Single 3.3V power supply
● Up to 500m link length with SMF
● 4 channels 1310nm DML transmitter (uncooled)
● 4 channels photo detector array receiver
● MPO12/APC connector receptacle
● 200GAUI-4 electrical interface
● Compliant with CMIS4.0
● I2C management interface
● Built-in digital diagnostic functionality
● RoHS compliant (lead free)
Applications
● 200GBASE-DR4 Ethernet (PAM4)
● Data Center Network
Absolute Maximum Ratings
|
Parameter |
Symbol |
Min |
Max |
Unit |
|
Supply Voltage |
Vcc |
-0.3 |
3.6 |
V |
|
Input Voltage |
Vin |
-0.3 |
Vcc+0.3 |
V |
|
Storage Temperature |
Ts |
-20 |
85 |
ºC |
|
Case Operating Temperature |
Tc |
0 |
70 |
ºC |
|
Humidity (non-condensing) |
Rh |
5 |
95 |
% |
Recommended Operating Conditions
|
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
|
Supply Voltage |
Vcc |
3.13 |
3.3 |
3.47 |
V |
|
Operating Case Temperature |
Tc |
0 |
70 |
ºC |
|
|
Baud Rate per Lane (PAM4) |
fd |
26.5625 |
GBaud/s |
||
|
Humidity |
Rh |
5 |
85 |
% |
|
|
Power Dissipation |
Pm |
6.0 |
W |
Electrical Specifications
|
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
|
Differential Input Impedance |
Zin |
90 |
100 |
110 |
ohm |
|
Differential Output Impedance |
Zout |
90 |
100 |
110 |
ohm |
|
Differential Input Voltage Amplitude |
ΔVin |
300 |
900 |
mVpp |
|
|
Differential Output Voltage Amplitude |
ΔVout |
300 |
900 |
mVpp |
|
|
Bit Error Rate Note2 |
BER |
2.4E-4 |
|||
|
Input Logic Level High |
VIH |
2.0 |
Vcc |
V |
|
|
Input Logic Level Low |
VIL |
0 |
0.8 |
V |
|
|
Output Logic Level High |
VOH |
Vcc-0.5 |
Vcc |
V |
|
|
Output Logic Level Low |
VOL |
0 |
0.4 |
V |
Optical Characteristics
|
parameter |
symboI |
Min |
TypicaI |
Max |
unit |
|
Transmitter |
|||||
|
center wavelength |
L1 |
1304.5 |
1317.5 |
nm |
|
|
center wavelength |
L2 |
1304.5 |
1317.5 |
nm |
|
|
center wavelength |
L3 |
1304.5 |
1317.5 |
nm |
|
|
center wavelength |
L4 |
1304.5 |
1317.5 |
nm |
|
|
sMsR |
sMsR |
30 |
nm |
||
|
Average Launch power (each lane) |
pout |
-5.1 |
3.0 |
dBm |
|
|
Average Launch power (total) |
ptatal |
10.7 |
dBm |
||
|
Outer Optical Modulation Amplitude (each lane) |
OMAout |
-3.0 |
2.8 |
dBm |
|
|
Transmitter and dispersion eye closure (each lane) |
TDEcQ |
3.4 |
dB |
||
|
Average launch power of off transmitter (each lane) |
poff |
-30 |
dBm |
||
|
Outer Extinction Ratio |
ER |
3.5 |
dB |
||
|
Optical Return Loss Tolerance |
ORLT |
21.4 |
dB |
||
|
Transmitter reflectance |
TR |
-26 |
dB |
||
|
Receiver |
|||||
|
center wavelength |
L1 |
1304.5 |
1317.5 |
nm |
|
|
center wavelength |
L2 |
1304.5 |
1317.5 |
nm |
|
|
center wavelength |
L3 |
1304.5 |
1317.5 |
nm |
|
|
center wavelength |
L4 |
1304.5 |
1317.5 |
nm |
|
|
Damage threshold |
Rdam |
4.0 |
dBm |
||
|
Average Receive power (each lane) |
pin |
-8.1 |
3.0 |
dBm |
|
|
Receiver power (OMAouter) (each lane) |
OMAout |
2.8 |
dBm |
||
|
Receiver reflectance |
pref |
-26 |
dB |
||
|
stressed Receiver sensitivity(OMAouter) (each lane) |
sen-s |
-4.1 |
dBm |
||
|
Receiver sensitivity (OMAouter) (each lane) Note1 |
sen |
-6.6 |
dBm |
||
Note:
Note1. Measured with conformance test signal at TP3 for the BER specified in IEEE 802.3 200GBASE-DR4.

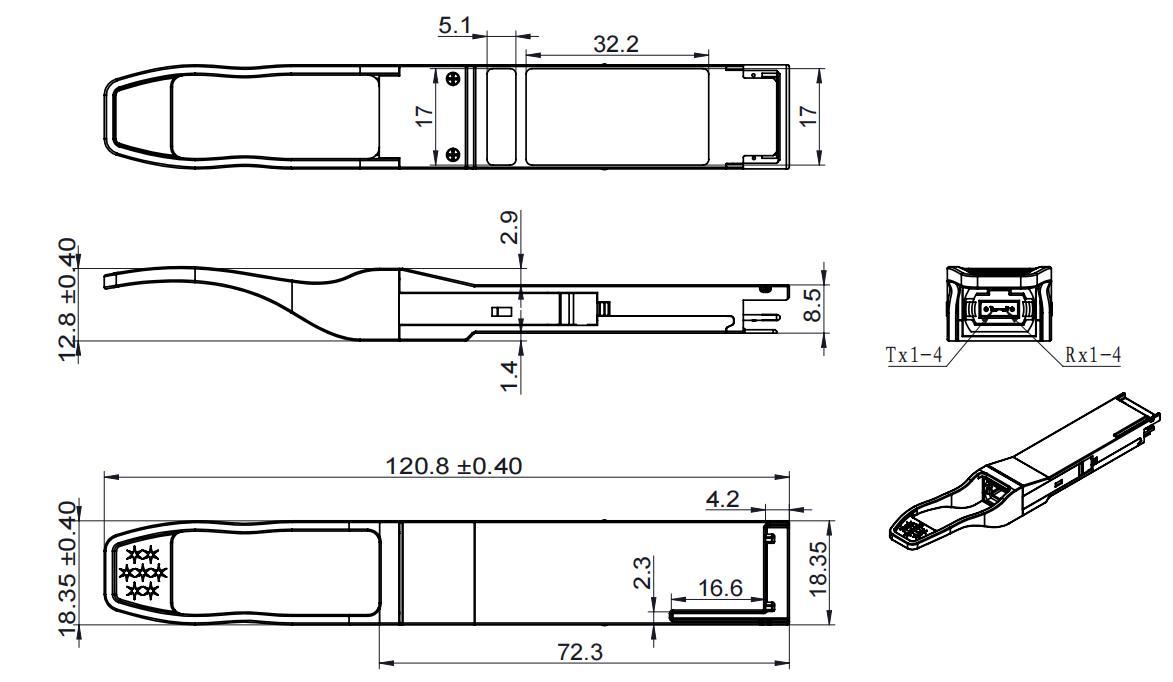

Mechanical Dimensions
Ordering Information
|
Part Number |
Product Description |
|
FTQ5-2H-DR4 |
QSFP56，200GBASE-DR4 Transceiver，500m over parallel SMF，PAM4 DSP inside.,0ºC ~ +70ºC |
北亿纤通 | F-tone Networks
企业邮箱： 该邮件地址已受到反垃圾邮件插件保护。要显示它需要在浏览器中启用 JavaScript。
企业手机：19081343401
企业电话：028-85255257
企业传真：028-85977702
注：本产品有全国产化型号可选
本产品为QSFP56系列光模块，仅展示部分参数，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
