Product Description
      F-tone Networks’s FTCS-Bxx3G-xxxx series of transceiver modulesare the perfect solution for high -speed communication networks.These transceiver modules support data rates up to 3Gbps. The module is fully compliant with Small Form-Factor Pluggable (SFP) Transceiver Multi-Source Agreement (MSA).These transceiver modules provides the system designer with Camera, Video, HDTV/SDTV Fibre Channel applications.

Product Features
● DFB Laser Diode Transmitter
● Up to 40 Km on 9/125μm SMF
● 3.3V power supply
● LC duplex optical interface
● CML Differential Input/Output and LVTTL signal detect
● Support Video Pathological Patterns for SD-SDI,HD-SDI and 3G-SDI
● Class 1 Laser International Safety Standard IEC 825 Compliant
● Operating case temperature range (Standard：0 to+70℃)

Application
● SMPTE 259M/292M/424M Compliant Electrical-to-Optical Interfaces
● HDTV/SDTV Fibre Channel applications

Absolute Maximum Ratings
Operating of the transceiver beyond the Absolute Conditions Listed in Table 1 will degrade or damage the product. It’s not implied that the product would function above the recommended operating environment, it’s possible to reduce the reliability and lifetime of device if Recommended Operating Environment is exceeded (Refer to table 2)
Table 1--- Absolute Maximum Conditions

Parameter

Symbol

Min

Max

Units

Note

Storage Temperature

TST

-40

+85

℃

-

Relative Humidity

RH

5

95

%

-

Supply Voltage

VCC

0

+3.6

V

-

Table 2--- Recommended Operating Environment and Electrical Characteristics

Parameter

Symbol

Min

Typ

Max

Units

Note

Supply Voltage

VCC

+3.1

+3.3

+3.5

V

-

Supply Current

Icc

-

-

300

mA

-

Operating Case Temperature

TOP

0

-

+70

℃

-

Data Rate

B

270

-

3000

Mbps

-



Optical Parameters
Table 3--- FTCS-B133G-20xx Transceiver Optical Characteristics (Ambient Operating Temperature Ta=+25±5°C, VCC = 3.3±0.2V)

Parameter

Symbol

Min

Typ

Max

Units

Note

Transmitter

Data rate

B

270

-

3000

Mbps

-

Output Center Wavelength

λc

1260

1310

1360

nm

-

Output Spectral width (-20dB)

λ

-

-

1

nm

-

Average Optical Output Power

Po

-5

-

0

dBm

1,2

Extinction Ratio

ER

5

-

-

dB

1,2

Optic Output Eye: Compliant ITU-T G.957

1,2

Receiver

Receiver Sensitivity

Pmin

-

-

-18

dBm

1,2

Receiver Saturation

Pmax

-3

-

-

dBm

1,2

Operation Center Wavelength

λc

1480

-

1580

nm

-

Loss of Signal

Assert

LOSA

-30

-

-

dBm

1,2

Deassert

LOSD

-

-

-18

dBm

1,2

LOS Hysteresis

LOSHYS

0.5

-

-

dB

-

Note1 ：The optical power is launched into 9/125μm SMF.
Note2 ：With a PRBS 223-1 test pattern@ 3000Mbps ，The sensitivity of the Pathological Patterns≦-16.

Table 4--- FTCS-B153G-20xx Transceiver Optical Characteristics(Ambient Operating Temperature Ta=+25±5°C, VCC = 3.3±0.2V)

Parameter

Symbol

Min

Typ

Max

Units

Note

Transmitter

Data rate

B

270

-

3000

Mbps

-

Output Center Wavelength

λc

1480

1550

1580

nm

-

Output Spectral width (-20dB)

λ

-

-

1

nm

-

Average Optical Output Power

Po

-3

-

+2

dBm

1,2

Extinction Ratio

ER

5

-

-

dB

1,2

Optic Output Eye: Compliant ITU-T G.957

1,2

Receiver

Receiver Sensitivity

Pmin

-

-

-18

dBm

1,2

Receiver Saturation

Pmax

-3

-

-

dBm

1,2

Operation Center Wavelength

λc

1260

-

1360

nm

-

Loss of Signal

Assert

LOSA

-30

-

-

dBm

1,2

Deassert

LOSD

-

-

-18

dBm

1,2

LOS Hysteresis

LOSHYS

0.5

-

-

dB

-

Note1 ：The optical power is launched into 9/125μm SMF.
Note2 ：With a PRBS 223-1 test pattern@ 3000Mbps ，The sensitivity of the Pathological Patterns≦-16.

Table 5--- FTCS-B133G-35xx Transceiver Optical Characteristics(Ambient Operating Temperature Ta=+25±5°C, VCC = 3.3±0.2V)

Parameter

Symbol

Min

Typ

Max

Units

Note

Transmitter

Data rate

B

270

-

3000

Mbps

-

Output Center Wavelength

λc

1260

1310

1360

nm

-

Output Spectral width (-20dB)

λ

-

-

1

nm

-

Average Optical Output Power

Po

-3

-

+2

dBm

1,2

Extinction Ratio

ER

5

-

-

dB

1,2

Optic Output Eye: Compliant ITU-T G.957

1,2

Receiver

Receiver Sensitivity

Pmin

-

-

-18

dBm

1,2

Receiver Saturation

Pmax

-3

-

-

dBm

1,2

Operation Center Wavelength

λc

1480

-

1580

nm

-

Loss of Signal

Assert

LOSA

-45

-

-

dBm

1,2

Deassert

LOSD

-

-

-18

dBm

1,2

LOS Hysteresis

LOSHYS

0.5

-

-

dB

-

Note1 ：The optical power is launched into 9/125μm SMF.
Note2 ：With a PRBS 223-1 test pattern@ 3000Mbps ，The sensitivity of the Pathological Patterns≦-16.

Table 6--- FTCS-B153G-40xx Transceiver Optical Characteristics(Ambient Operating Temperature Ta=+25±5°C, VCC = 3.3±0.2V)

Parameter

Symbol

Min

Typ

Max

Units

Note

Transmitter

Data rate

B

270

-

3000

Mbps

-

Output Center Wavelength

λc

1480

1550

1580

nm

-

Output Spectral width (-20dB)

λ

-

-

1

nm

-

Average Optical Output Power

Po

-3

-

+2

dBm

1,2

Extinction Ratio

ER

5

-

-

dB

1,2

Optic Output Eye: Compliant ITU-T G.957

1,2

Receiver

Receiver Sensitivity

Pmin

-

-

-18

dBm

1,2

Receiver Saturation

Pmax

-3

-

-

dBm

1,2

Operation Center Wavelength

λc

1260

-

1360

nm

-

Loss of Signal

Assert

LOSA

-30

-

-

dBm

1,2

Deassert

LOSD

-

-

-18

dBm

1,2

LOS Hysteresis

LOSHYS

0.5

-

-

dB

-

Note1 ：The optical power is launched into 9/125μm SMF.
Note2 ：With a PRBS 223-1 test pattern@ 3000Mbps ，The sensitivity of the Pathological Patterns≦-16.

Electrical Parameters
Table 7--- Transceiver Electrical Characteristics(Ambient Operating Temperature Ta=+25±5°C, VCC = 3.3 ±0.2V)

Parameter

Symbol

Min

Typ

Max

Units

Note

Supply Voltage

VCC

+3. 1

+3.3

+3.5

V

-

Supply Current

ICC

-

-

300

mA

-

Transmitter

Differential Input Voltage

Vin

400

-

2000

mVP-P

-

Input Differential Impedance

Zin

90

100

110

Ω

-

TX_DISABLE

Disable

VD

2.0

-

Vcc

V

-

Enable

VEN

0

-

0.8

-

TX_ Fault

Fault

VF

2.0

VCC

V

-

Normal

VN

0

-

0.8

-

Receiver

Differential Output Voltage

VOUT

400

-

2000

mVP-P

-

RX_LOS

Fault

VF

2.0

-

Vcc

V

-

Normal

VN

0

-

0.8

-

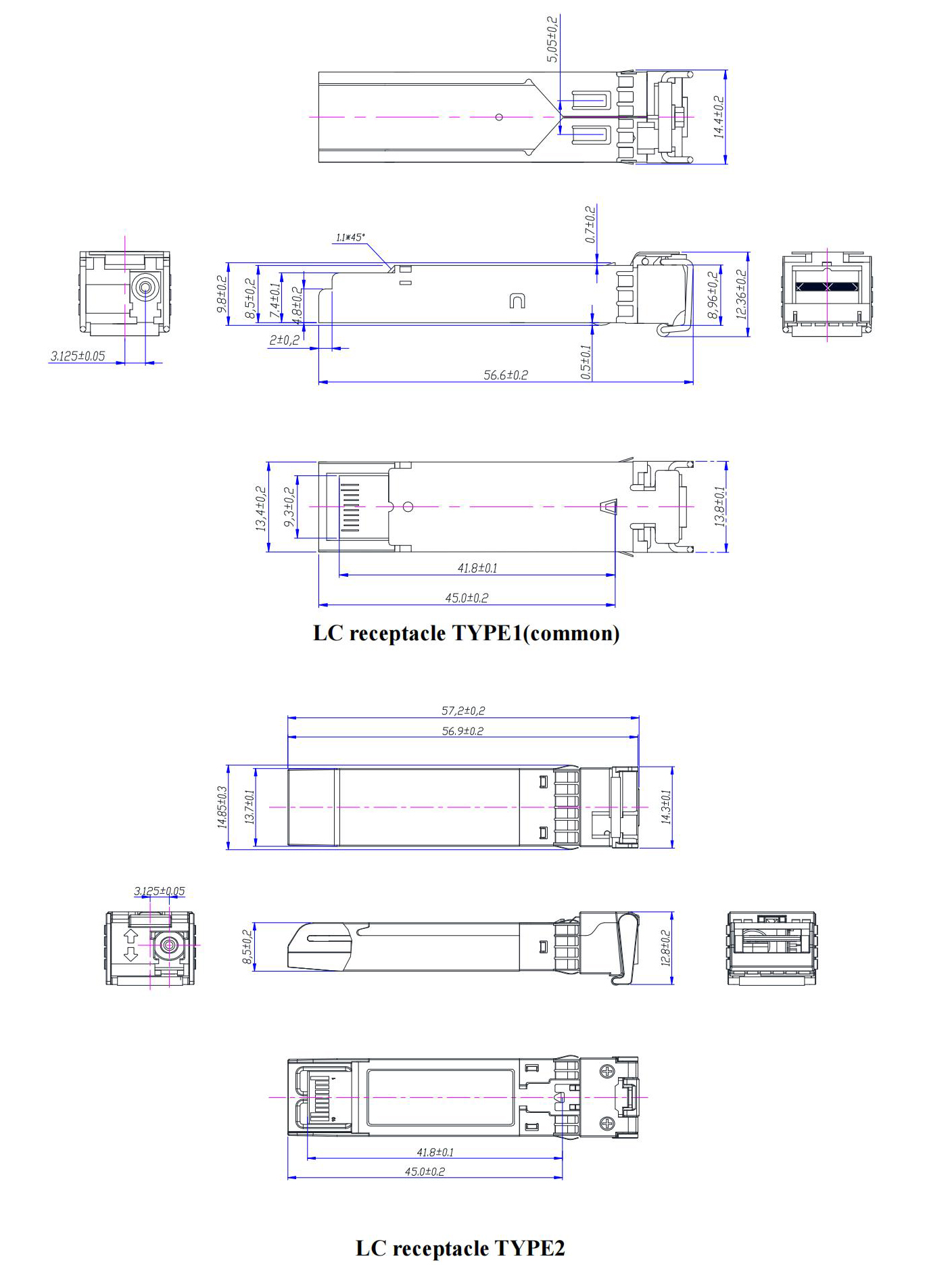

Module Outline Drawing（Units in mm)25.3.26 2

Order Information

产品型号

基本参数

FTCS-B133G-20

SFP 光模块-BIDI-1310nm TX/1550nm RX-3G SDI-20KM-商业级

FTCS-B153G-20

SFP 光模块-BIDI-1550nm TX/1330nm RX-3G SDI-20KM-商业级

FTCS-B133G-35

SFP 光模块-BIDI-1310nm TX/1550nm RX-3G SDI-35KM-商业级

FTCS-B153G-40

SFP 光模块-BIDI-1550nm TX/1330nm RX-3G SDI-40KM-商业级

FTCS-B133G-20I

SFP 光模块-BIDI-1310nm TX/1550nm RX-3G SDI-20KM-工业级

FTCS-B153G-20I

SFP 光模块-BIDI-1550nm TX/1330nm RX-3G SDI-20KM-工业级

FTCS-B133G-35I

SFP 光模块-BIDI-1310nm TX/1550nm RX-3G SDI-35KM-工业级

FTCS-B153G-40I

SFP 光模块-BIDI-1550nm TX/1330nm RX-3G SDI-40KM-工业级
