产品应用
● 万兆位以太网
● 光纤通道
● SONET/SDH
● 交换机

产品特点
● 单模光纤，传输距离1km
● 速率3.125~10Gbps
● 波长1270nm/1330nm
● 单纤双向，尾纤外径∅0.9mm，长度和接口可定制
● 3.3v单电源供电
● 紧凑的结构设计
● 抗振动设计
● 适应于高速信号完整性的表贴I/O引脚
● 标准LC/FC光接口
● I0PIN排针电接口
● 工作温度:工业级:-40°C~+85°C 扩展工业级:-55℃~+85℃

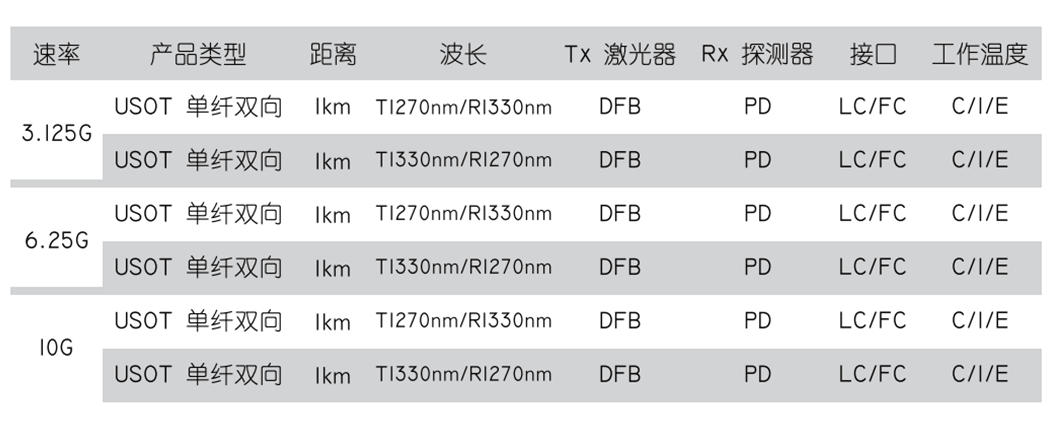

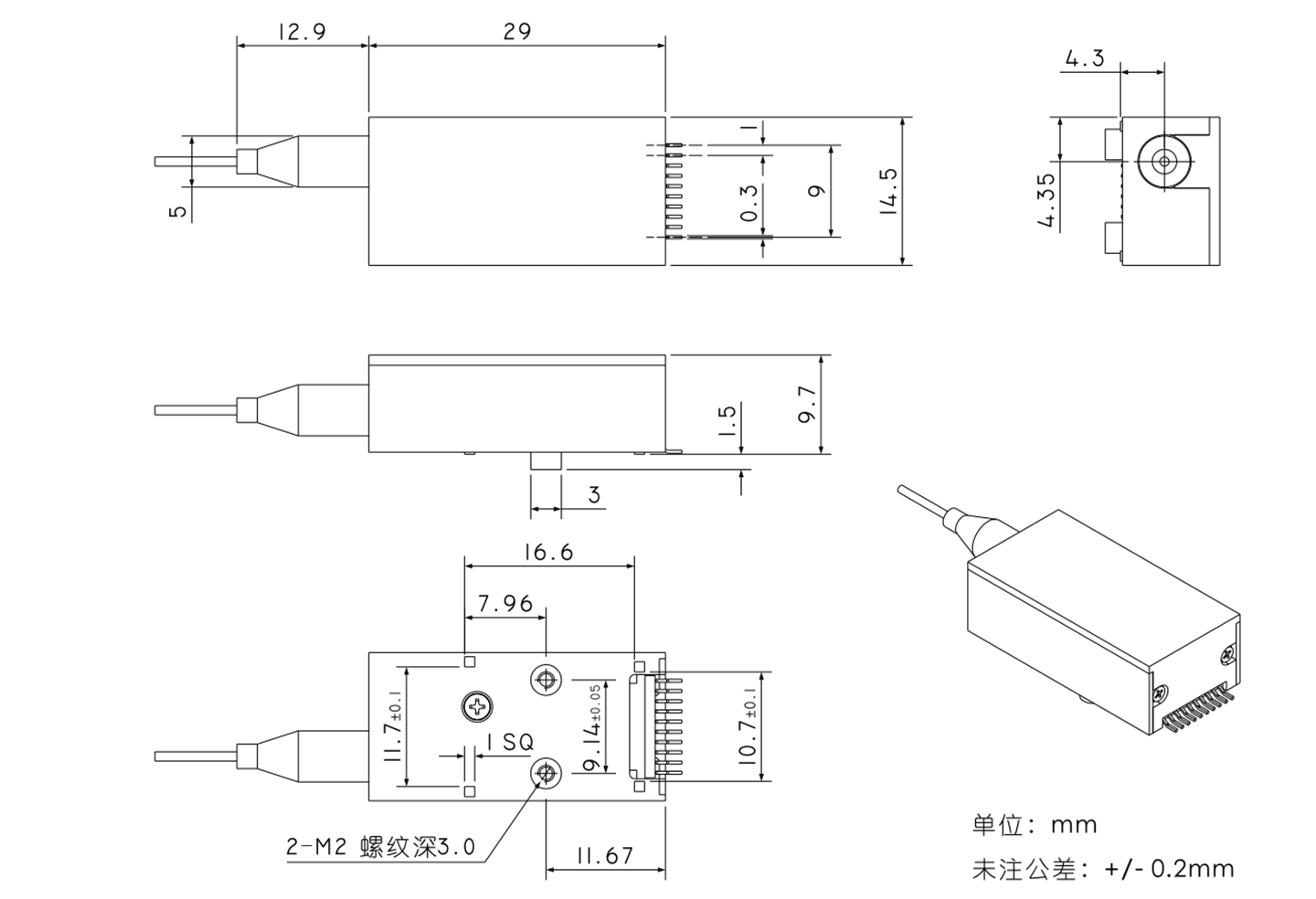

主要技术参数封装尺寸

北亿纤通 | F-tone Networks
企业邮箱：该邮件地址已受到反垃圾邮件插件保护。要显示它需要在浏览器中启用 JavaScript。
企业手机：19081343401
企业电话：028-85255257
企业传真：028-85977702

注：本产品有全国产化型号可选
本产品为FT-89系列，仅展示部分参数，如有需要，请联系我们。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
