Description
The F-tone Networks 100GE CWDM4 2km QSFP28 optical transceiver (FTQ2-HG-CWDM4-02xx) is designed for use in 100-Gigabit Ethernet links up to 2km on Single Mode Fiber (SMF). It is compliant with the QSFP28 MSA, CWDM4 MSA and relevant portions of IEEE 802.3bm. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP28 MSA. It converts 4 input channels of 25.78125Gb/s electrical data to 4 channels of CWDM optical signals and then multiplexes them into a single channel for 103.125Gb/s optical transmission. Reversely on the receiver side, the module de-multiplexes a 103.125Gb/s optical input into 4 channels of CWDM optical signals and then converts them to 4 output channels of electrical data. The central wavelengths of the 4 CWDM channels are 1271nm, 1291nm, 1311nm and 1331nm as members of the CWDM wavelength grid defined in CWDM4 MSA.

Features
● Hot-pluggable QSFP28 form factor
● 4 channels full-duplex transceiver module
● Supports 103.125Gb/s aggregate bit rate
● 4 channels DFB-based CWDM uncooled transmitter
● 4 channels PIN ROSA
● Internal CDR circuits on both receiver and transmitter channels
● 3.5W maximum power dissipation
● Maximum link length of 2km on SMF with KR4 FEC
● Duplex LC receptacle
● Single 3.3V power supply
● RoHS-6 compliant (lead free)
● Case operating temperature
     Commercial: 0 ~ +70℃
     Industrial: -40 ~ +85℃

Applications
● 100GE CWDM4 applications with FEC

Absolute Maximum Ratings

Parameter

Symbol

Min

Max

Unit

Supply Voltage

Vcc

-0.3

3.6

V

Input Voltage

Vin

-0.3

Vcc+0.3

V

Storage Temperature

Ts

-20

85

ºC

Case Operating Temperature

Tc

0

70

ºC

Humidity (non-condensing)

Rh

5

85

%

Damage Threshold (each lane)

THd

5.5

dBm

Recommended Operating Conditions

Parameter

Symbol

Min

Typical

Max

Unit

Supply Voltage

Vcc

3.13

3.3

3.47

V

Operating Case Temperature

Tc

0

70

ºC

Data Rate Per Lane

fd

25.78125

Gb/s

Humidity

Rh

5

85

%

Power Dissipation

Pm

3.5

W

Link Distance with G.652

D

0.002

2

km

Electrical Specifications

Parameter

Symbol

Min

Typical

Max

Unit

Supply Current

Icc

1.12

A

Transceiver Power-on Initialization Time1

2000

ms

Transmitter (each Lane)

Single-ended Input Voltage Tolerance

-0.3

4.0

V

AC Common Mode Input Voltage Tolerance

15

mV

Differential Input Voltage

50

mVp-p

Differential Input Voltage Swing

Vin

190

1000

mVp-p

Differential Input Impedance

Zin

90

100

110

Ohm

Receiver (each lane)

Single-ended Output Voltage

-0.3

4.0

V

AC Common Mode Output

7.5

mV

Differential Output Voltage Swing

Vout

300

900

mVp-p

Differential Output Impedance

Zout

90

100

110

Ohm

 Note:1. Power-on Initialization Time is the time from when the power supply voltages reach and remain above the minimum recommended operating supply voltages to the time when the module is fully functional.

Optical Characteristics

Parameter

Symbol

Min

Typical

Max

Unit

Lane Wavelength

L0

1264.5

1271

1277.5

nm

L1

1284.5

1291

1297.5

nm

L2

1304.5

1311

1317.5

nm

L3

1324.5

1331

1337.5

nm

Transmitter

Side Mode Suppression Ratio

SMSR

30

dB

Total Average Launch Power

PT

8.5

dBm

Average Launch Power (each Lane)

PAVG

-6.5

2.5

dBm

Optical Modulation Amplitude1 (each lane)

POMA

-4.0

2.5

dBm

Launch Power in OMA minus TDP

-5

dB

Transmitter and Dispersion Penalty (TDP) (each lane)

TDP

3.0

dB

Extinction Ratio

ER

3

dB

Relative Intensity Noise

RIN

-130

dB/Hz

Optical Return Loss Tolerance

TOL

20

dB

Transmitter Reflectance

RT

-12

dB

Average Launch Power of OFF transmitter (each lane)

POFF

-30

dBm

Eye Mask Coordinates2: X1, X2, X3, Y1, Y2, Y3

{0.31, 0.4, 0.45, 0.34, 0.38, 0.4}

Receiver

Damage Threshold3 (each lane)

THd

3.5

dBm

Average Receive Power (each lane)

-11.5

2.5

dBm

Receive Power (OMA) (each lane)

2.5

dBm

Receiver Sensitivity (OMA)4 (each lane)

SEN

-10

dBm

Stressed Receiver Sensitivity (OMA)5

(each Lane)

-7.3

dBm

LOS Assert

-16

dBm

LOS De-Assert – OMA

-14

-7.5

dBm

LOS Hysteresis

0.5

2

dB

Receiver Electrical 3 dB upper Cutoff Frequency (each Lane)

Fc

31

GHz

Conditions of Stress Receiver Sensitivity Test6

Vertical Eye Closure Penalty6

VECP

1.9

dB

Stressed Eye J2 Jitter

J2

0.33

UI

Stressed Eye J4 Jitter

J4

0.48

UI

Note：

  • Even if the TDP <1dB, the OMA min must exceed the minimum value specified here.
  • Hit ratio of 5e-5, per IEEE; See Figure 2 below.
  • The receiver shall be able to tolerate, without damage, continuous exposure to a modulated optical input signal having this power level on one lane. The receiver does not have to operate correctly at this input power.
  • Measured with conformance test signal at receiver input for BER = 5e-5 BER.
  • Measured with CWDM4 MSA conformance test signal at TP3 for 5e-5
  • Vertical eye closure penalty and stressed eye jitter are test conditions for measuring stressed receiver sensitivity. They are not characteristics of the receiver.

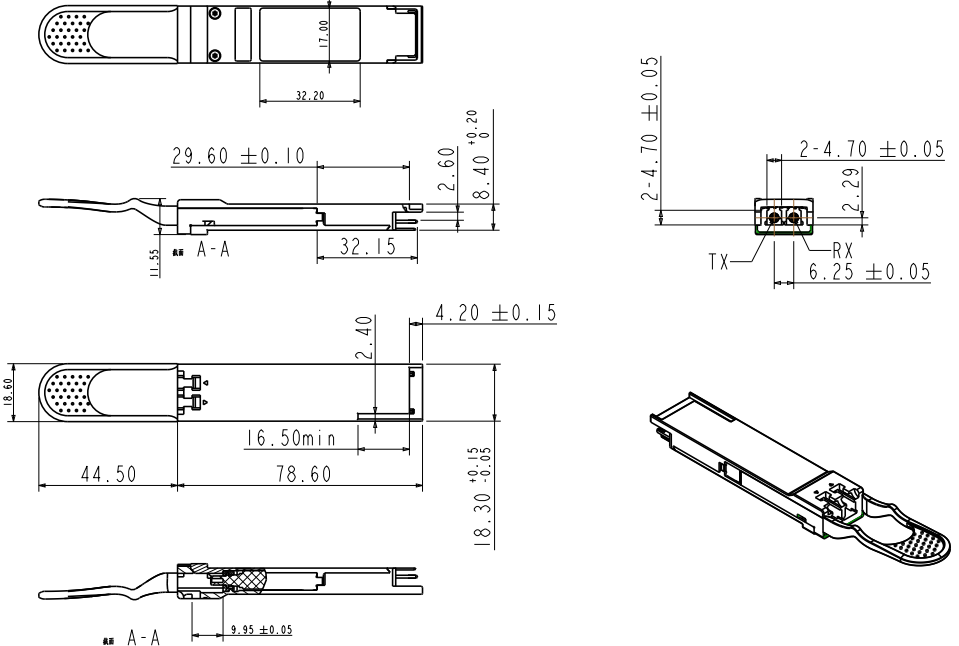

Mechanical Dimensions36

Ordering Information

Product Description

Part Number

QSFP28 CWDM4, 103.125Gb/s, 1310nm, 2km, SMF, LC, 0 ~ +70℃

FTQ2-HG-CWDM4-02

QSFP28 CWDM4, 103.125Gb/s, 1310nm, 2km, SMF, LC, -40 ~ +85℃

FTQ2-HG-CWDM4-02I
