Description
The F-tone Networks Technologies FTQ2-HG-IR4-M2-xxx is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP28 to SMF MTP 8 APC Male Connector AOC for 100 or 40 Gigabit Ethernet , Infiniband DDR/EDR Applications. This transceiver is a high performance module for data communication and interconnect applications. It integrates four data lanes in each direction with 104 Gbps bandwidth. Each lane can operate at 26Gbps up to 2km over G.652 SMF. These modules are designed to operate over singlemode fiber systems using a nominal wavelength of 1310nm. The electrical interface uses a 38 contact edge type connector. The optical interface uses a single male MTP (APC 8-degree) connector. This module incorporates F-tone Networks Technologies proven circuit and Optical technology to provide reliable long life, high performance, and consistent service.

Features
● 4 channels full-duplex transceiver modules
● Transmission data rate up to 26Gbps per channel
● 4 channels 1310nm DFB
● 4 channels PIN photo detector array
● Internal CDR circuits on both receiver and transmitter channels
● Support CDR bypass
● Low power consumption <3.5W
● Hot Pluggable QSFP form factor
● Up to 2km reach for G.652 SMF
● 3M Single male MTP (APC 8-degree) connector receptacle
● 3.3V power supply voltage
● RoHS 6 compliant(lead free)
● Case operating temperature
     Commercial: 0 ~ +70℃
     Industrial: -40 ~ +85℃

Applications
● 100G Ethernet links
● Infiniband DDR/EDR
● Datacenter and Enterprise networking

Absolute Maximum Ratings

Parameter

Symbol

Min

Max

Unit

Supply Voltage

Vcc

-0.3

3.6

V

Input Voltage

Vin

-0.3

Vcc+0.3

V

Storage Temperature

Tst

-20

85

ºC

Case Operating Temperature

Top

0

70

ºC

Humidity(non-condensing)

Rh

5

95

%

Recommended Operating Conditions

Parameter

Symbol

Min

Typical

Max

Unit

Supply Voltage

Vcc

3.13

3.3

3.47

V

Operating Case temperature

Tca

0

70

ºC

Data Rate Per Lane

fd

25.78125

Gbps

Humidity

Rh

5

85

%

Power Dissipation

Pm

2

3.5

W

Supply Current

Icc

1.1

A

Link Distance with G.652

D

0.002

2

km

Electrical Specifications

Parameter

Symbol

Min

Typical

Max

Unit

Differential input impedance

Zin

90

100

110

ohm

Differential Output impedance

Zout

90

100

110

ohm

Differential input voltage amplitude  aAmplitude

ΔVin

190

700

mVp-p

Differential output voltage amplitude

ΔVout

300

850

mVp-p

Input Logic Level High

VIH

2.0

VCC

V

Input Logic Level Low

VIL

0

0.8

V

Output Logic Level High

VOH

VCC-0.5

VCC

V

Output Logic Level Low

VOL

0

0.4

V

Note：
1.   Differential input voltage amplitude is measured between TxnP and TxnN.
2.   Differential output voltage amplitude is measured between RxnP and RxnN.

Optical Characteristics
Table 3 - Optical Characteristics

Parameter

Symbol

Min

Typical

Max

Unit

Notes

Transmitter

Centre Wavelength

λc

1295

1310

1325

nm

-

Side Mode Suppression Ratio

SMSR

30

-

dB

-

Average launch power, each lane

PAVG

1

-

3.5

dBm

-

Optical Modulation Amplitude

(OMA),each lane

POMA

2.0

4.5

dBm

1

Launch Power in OMA minus Transmitter and Dispersion Penalty(TDP),each lane

1.0

dBm

TDP,each lane

TDP

3.2

dB

Extinction Ratio

ER

3.5

-

-

dB

-

Relative Intensity Noise

RIN

-128

dB/Hz

Optical Return Loss Tolerance

TOL

12

dB

Transmitter Reflectance

RT

-12

dB

Average launch power of OFF

transmitter, each lane

POFF

-30

dBm

-

Eye Mask coordinates:

   X1, X2, X3, Y1, Y2, Y3

{0.25,0.4,0.45,0.25,0.28.0.4}

Hit Ratio = 5x10-5

Receiver

Centre Wavelength

λc

1295

1310

1325

nm

-

Damage Threshold,each lane

THd

4.5

dBm

2

Average Receive Power,     each lane

-12

3.5

dBm

Receiver Reflectance

RR

-12

dBm

Receiver Sensitivity (OMA),   each lane

SEN

-9

dBm

3

LOS Assert

LOSA

-18

dBm

-

LOS De-Assert – OMA

LOSD

-15

-7.5

dBm

-

LOS Hysteresis

LOSH

0.5

dB

-

Note：
1. Even if the TDP<1dB,the OMA min must exceed the minimum value specified here.
2. The receiver shall be able to tolerate, without damage, continuous exposure to a modulated optical input signal having this power level on one lane. The receiver does not have to operate correctly at this input power.
3. Sensitivity is specified at 5x10^-5 BER at 25.78125Gb/s.

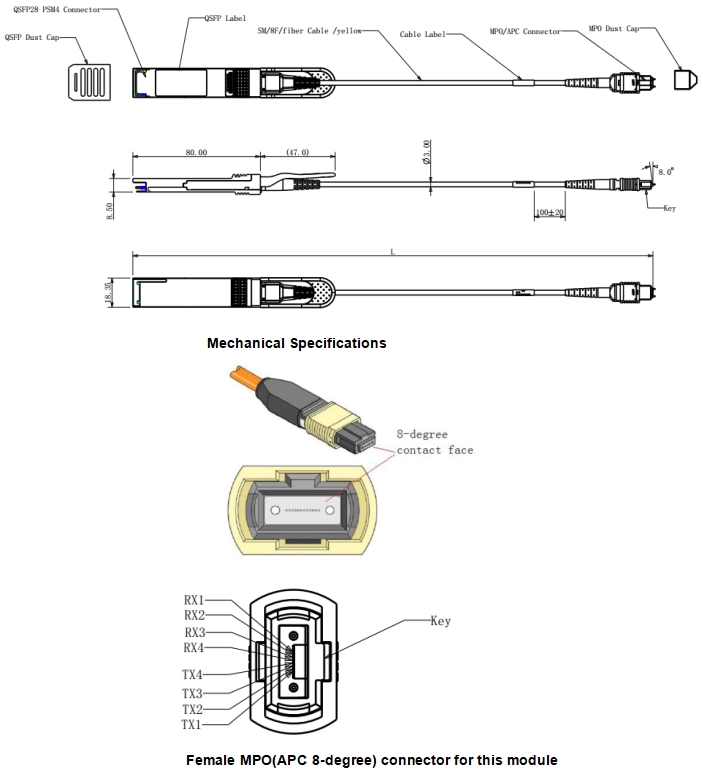

Mechanical Dimensions48

Ordering information

Part Number

Product Description

FTQ2-HG-IR4-M2-xxx

QSFP28 to SMF MTP 8 APC Male Connector AOC, reach 2km on G.652,0ºC ~ +70ºC

FTQ2-HG-IR4-M2-xxxI

QSFP28 to SMF MTP 8 APC Male Connector AOC, reach 2km on G.652,-40ºC ~ +85ºC













北亿纤通 | F-tone Networks

企业邮箱： 该邮件地址已受到反垃圾邮件插件保护。要显示它需要在浏览器中启用 JavaScript。
企业手机：19081343401
企业电话：028-85255257
企业传真：028-85977702

注：本产品有全国产化型号可选

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
