Features
● Small size: 19.8*16.0*9.6mm
● High responsivity: ≥0.6 @ 1310nm
≥0.7 @ 1550nm
● Wide operating frequency from 10MHz to 20GHz
● Wide wavelength range from 1260nm to 1620nm
● DC-block and matched to 50 Ohm
Applications
● Antenna remoting
● GPS signal transport
● Wireless signal transport
● Distributed antenna system
● High speed test and measurement
● Video Signal Distribution in HFC and FTTx Nodes
Absolute Maximum Ratings
|
Parameter |
Symbol |
Condition |
Min. |
Max. |
Unit |
|
Operating Temperature |
Tc |
I=Iop |
-40 |
+70 |
°C |
|
Storage Temperature |
Tstg |
-40 |
+85 |
°C |
|
|
Saturation Input Power |
Ps |
-- |
10 |
mW |
|
|
Forward Current |
If |
-- |
10 |
mA |
|
|
Reverse Bias |
Vr |
-- |
25 |
V |
|
|
Dark Current |
Td |
-- |
5 |
nA |
|
|
Relative Humidity |
HR |
-- |
85 |
% |
|
|
Pressure |
PR |
86 |
106 |
kpa |
|
|
ESD |
Human body model |
Class 1B |
Electrical and Optical Characteristics
|
Parameter |
Symbol |
Test Condition |
Min |
Typ |
Max |
Unit |
|
Wavelength Range |
λ |
1260 |
-- |
1620 |
nm |
|
|
Responsivity |
R |
1310nm |
0.6 |
-- |
-- |
mA/mW |
|
R |
1550nm |
0.7 |
-- |
-- |
mA/mW |
|
|
Frequency Bandwidth |
Fb |
0.01 |
- |
20 |
GHz |
|
|
Ripple of Passband |
Flatness |
-- |
-- |
±2 |
dB |
|
|
Second Order Intermodulation |
IMD2 |
-- |
-- |
-70 |
dBc |
|
|
Third Order Intermodulation |
IMD3 |
-- |
-- |
-75 |
dBc |
|
|
Back Reflection |
RL |
-- |
-45 |
-- |
dB |
|
|
Dark Current |
Id |
-- |
5 |
10 |
nA |
|
|
Power Consumption |
Pdiss |
+5V |
-- |
25 |
50 |
mW |
Fiber Specification
|
Parameter |
Typ. |
Unit |
|
Fiber Type |
SM |
|
|
Connector Type |
FC/APC(1) |
|
|
Pigtail Length |
1 |
m |
|
Minimum Bend Radius |
35 |
mm |
(1) FC/PC optional
PIN Function
|
PIN |
Name |
Direction |
Note |
|
1 |
POWER |
Ⅰ |
+5V(1) |
|
2 |
GND |
Ⅰ |
GND |
|
3 |
SMA |
O |
RF out |
(1)+3V optional

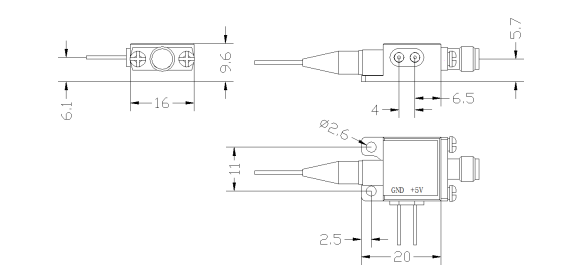

Mechanical (unit: mm)
Ordering Information
|
FTRFR |
- |
0 |
K |
N |
B00 |
F |
A |
- |
W |
000 |
|
Receiver |
Gain N: No Gain |
Wavelength Range 1100nm ~ 1620nm |
Optical Connector F: FC/APC |
Temperature Range W: -40 to 70℃ |
