Features
● Ultra-small size
● Flat frequency response
● Low power consumption
● Excellent EMI/EMC design
● Automatic optical power control
● High dynamic input and output range
● Single +5V Power supply both Tx and Rx
● Wide operating frequency from 10MHz to 6GHz
● Both Tx and Rx have optical power monitoring functions
● Receiver integrated broadband amplifier from 10MHz to 6GHz
Applications
● WiMAX / 4G / 5G
● Mobile backhaul
● GPS signal transport
● All-Digital QAM network
● Data and video distribution
● Distributed antenna system

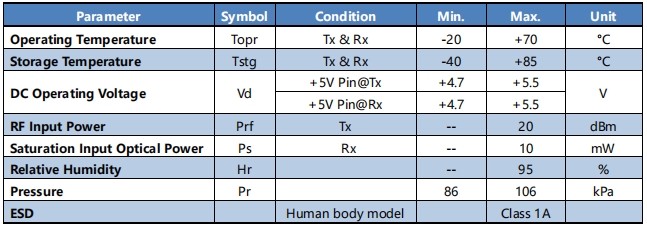

Absolute Maximum Ratings

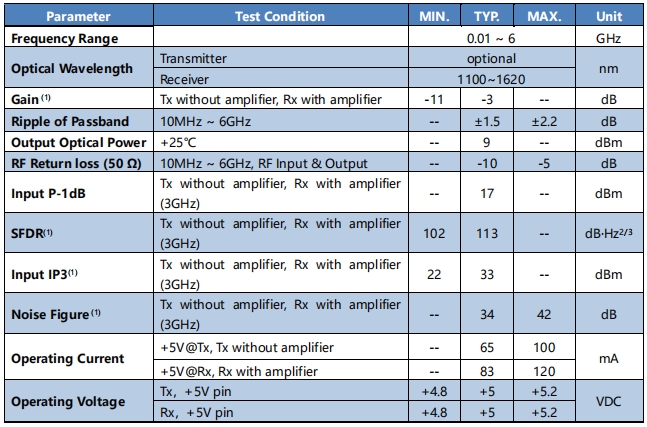

Typical Specification
Note: (1) Test with 1-meter SMF-28 fiber.

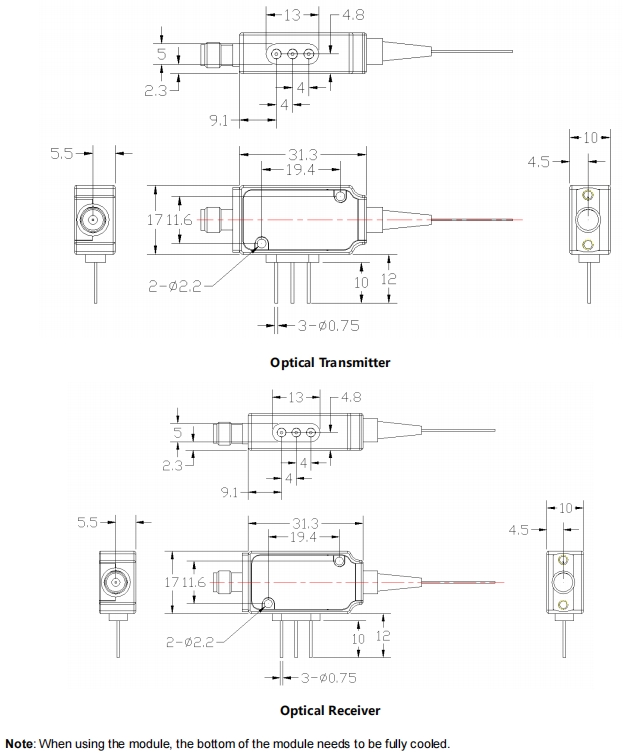

Mechanical (unit: mm)

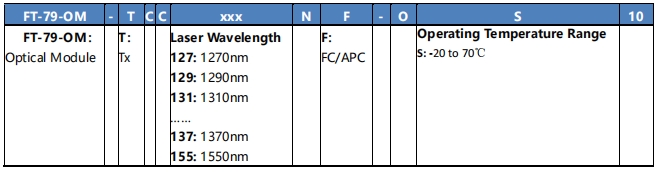

Ordering Information
Optical Transmitter
Optical Receiver
北亿纤通 | F-tone Networks
企业邮箱：该邮件地址已受到反垃圾邮件插件保护。要显示它需要在浏览器中启用 JavaScript。
企业手机：19081343401
企业电话：028-85255257
企业传真：028-85977702
注：本产品有全国产化型号可选
本产品为FT-79系列，仅展示部分参数，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
