Description
F-tone Networks QSFP+ to 8 x LC Connector Breakout Optical Cable are a high performance, low power consumption, long reach interconnect solution supporting 40G Ethernet, fiber channel and PCIe. It is compliant with the QSFP MSA and IEEE P802.3ba 40GBASE-SR4.
F-tone Networks QSFP+ Breakout Cable is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 10Gb/s, providing an aggregated rate of 40Gb/s.
QSFP+ Breakout Cable are suitable for short distances and offer a highly cost-effective way to connect within racks and across adjacent racks. These breakout cables connect to a 40G QSFP+ port of a switch on one end and to four 10G SFP+ Transceivers of a switch on the other end.
Features
- Full duplex 4 channel 850nm parallel active optical cable
- Transmission data rate up to 10.3Gbit/s per channel
- SFF-8436 QSFP+ compliant
- Hot pluggable electrical interface
- Differential AC-coupled high speed data interface
- 4 channels 850nm VCSEL array
- 4 channels PIN photo detector array
- Maximum link length of 300m on OM3 Multimode Fiber (MMF)and 400m on OM4 MMF
- Low power consumption
- Housing isolated from connector ground
- 3V power supply voltage
- RoHS 6 compliant
- Case operating temperature
Commercial: 0 ~ +70℃
Industrial: -40 ~ +85℃
Applications
- Infiniband transmission at 4ch SDR, DDR and QDR
- 40GBASE-SR4 40G Ethernet
- Data Centers
Absolute Maximum Ratings
|
Parameter |
Symbol |
Min |
Max |
Unit |
|
Supply Voltage |
Vcc |
-0.3 |
3.6 |
V |
|
Input Voltage |
Vin |
-0.3 |
Vcc+0.3 |
V |
|
Storage Temperature |
Tst |
-20 |
85 |
ºC |
|
Case Operating Temperature |
Top |
0 |
70 |
ºC |
|
Humidity(non-condensing) |
Rh |
5 |
95 |
% |
Recommended Operating Conditions
|
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
|
Supply Voltage |
Vcc |
3.13 |
3.3 |
3.47 |
V |
|
Operating Case temperature |
Tca |
0 |
70 |
ºC |
|
|
Data Rate Per Lane |
fd |
2.5 |
10.3 |
Gbps |
|
|
Humidity |
Rh |
5 |
85 |
% |
|
|
Power Dissipation |
Pm |
1.5 |
W |
||
|
Fiber Bend Radius |
Rb |
3 |
cm |
Specifications
|
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
|
Differential input impedance |
Zin |
90 |
100 |
110 |
ohm |
|
Differential Output impedance |
Zout |
90 |
100 |
110 |
ohm |
|
Differential input voltage amplitude |
ΔVin |
180 |
1200 |
mVp-p |
|
|
Differential output voltage amplitude |
ΔVout |
500 |
800 |
mVp-p |
|
|
Skew |
Sw |
300 |
ps |
||
|
Bit Error Rate |
BR |
E-12 |
|||
|
Input Logic Level High |
VIH |
2.0 |
VCC |
V |
|
|
Input Logic Level Low |
VIL |
0 |
0.8 |
V |
|
|
Output Logic Level High |
VOH |
VCC-0.5 |
VCC |
V |
|
|
Output Logic Level Low |
VOL |
0 |
0.4 |
V |
Note：
1. BER=10^-12; PRBS 2^该邮件地址已受到反垃圾邮件插件保护。要显示它需要在浏览器中启用 JavaScript。.
2. Differential input voltage amplitude is measured between TxNp and TxNn.
3. Differential output voltage amplitude is measured between RxNp and RxNn.
Optical Characteristics
|
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
Notes |
|
|
Transmitter |
|||||||
|
Centre Wavelength |
λc |
840 |
850 |
860 |
nm |
- |
|
|
RMS spectral width |
∆λ |
- |
- |
0.65 |
nm |
- |
|
|
Average launch power, each lane |
Pout |
-7.6 |
- |
2.4 |
dBm |
- |
|
|
Difference in launch power between any two lanes (OMA) |
4 |
dB |
- |
||||
|
Extinction Ratio |
ER |
3 |
- |
- |
dB |
- |
|
|
Peak power, each lane |
4 |
dBm |
- |
||||
|
ransmitter and dispersion penalty (TDP), each lane |
TDP |
3.5 |
dB |
- |
|||
|
Average launch power of OFF transmitter, each lane |
-30 |
dBm |
- |
||||
|
Eye Mask coordinates: X1, X2, X3, Y1, Y2, Y3 |
SPECIFICATION VALUES 0.23, 0.34, 0.43, 0.27, 0.35, 0.4 |
Hit Ratio = 5x10-5 |
|||||
|
Receiver |
|||||||
|
Centre Wavelength |
λc |
840 |
850 |
860 |
nm |
- |
|
|
Stressed receiver sensitivity in OMA,each lane |
-5.4 |
dBm |
1 |
||||
|
Maximum Average power at receiver input, each lane |
2.4 |
dBm |
- |
||||
|
Receiver Reflectance |
-12 |
dB |
- |
||||
|
Peak power, each lane |
4 |
dBm |
- |
||||
|
LOS Assert |
-30 |
dBm |
- |
||||
|
LOS De-Assert – OMA |
-7.5 |
dBm |
- |
||||
|
LOS Hysteresis |
0.5 |
dB |
- |
||||
Note：1．Measured with conformance test signal at TP3 for BER = 10e-12

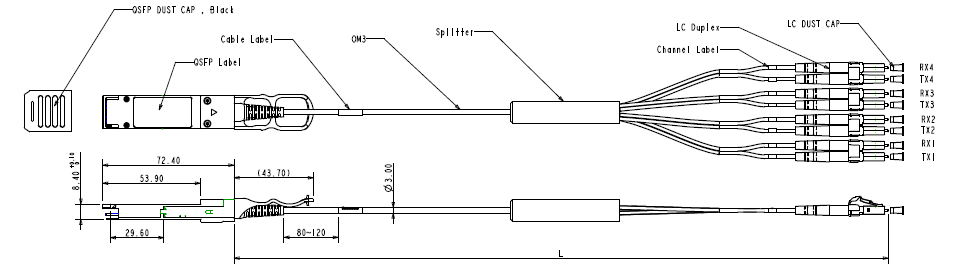

Mechanical Dimensions
Ordering information
|
Part Number |
Product Description |
|
FTCQ-4X-SR4-8LC-xxx |
xxx=different cable lengths on OM3 Multimode Fiber (MMF),0ºC ~ +70ºC |
|
FTCQ-4X-SR4-8LC-xxxI |
xxx=different cable lengths on OM3 Multimode Fiber (MMF),-40ºC ~ +85ºC |
|
xx(x) |
Cable Length on OM3 Multimode Fiber (MMF) |
|
03 |
003=3m |
|
05 |
005=5m |
|
10 |
010=10m |
|
20 |
020=20m |
|
50 |
050=50m |
|
300 |
300=300m |
References
1. SFF-8436 QSFP+
2. Infiniband IB-4x-SX, IB-4x-DDR-SX, IB-4x-QDR-SX
3. Ethernet 40GBASE-SR4
