Description
QSFP PSM LR4 are a high performance, low power consumption, long reach interconnect solution supporting 40G Ethernet, fiber channel and PCIe. It is compliant with the QSFP MSA and IEEE 802.3ae 10GBASE-LR/LW3. QSFP PSM LR4 is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 10.3125Gb/s, providing an aggregated rate of 40Gb/s.
Features
● Full duplex 4 channel 1310nm parallel module
● SFF-8436 QSFP+ compliant
● Hot pluggable electrical interface
● Differential AC-coupled high speed data interface
● 4 channels 1310nm DFB laser
● 4 channels PIN photo detector array
● Maximum link length of 10km on G652
● Single male MPO(APC 8-degree) connector receptacle
● Maximum power consumption 2.5W
● Housing isolated from connector ground
● 3.3V power supply voltage
● RoHS 6 compliant
● Case operating temperature
Commercial: 0 ~ +70℃
Industrial: -40 ~ +85℃
Applications
● Infiniband Connectivity SDR/DDR/QDR
● 10GBASE-LR/W 10G Ethernet
● 2/4/8 Gbps Fiber Channel
● Data Centers and Storage Arrays
Absolute Maximum Ratings
Parameter |
Symbol |
Min |
Max |
Unit |
Supply Voltage |
Vcc |
-0.3 |
3.6 |
V |
Input Voltage |
Vin |
-0.3 |
Vcc+0.3 |
V |
Storage Temperature |
Tst |
-20 |
85 |
ºC |
Case Operating Temperature |
Top |
0 |
70 |
ºC |
Humidity(non-condensing) |
Rh |
5 |
95 |
% |
Recommended Operating Conditions
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
Supply Voltage |
Vcc |
3.13 |
3.3 |
3.47 |
V |
Operating Case temperature |
Tca |
0 |
70 |
ºC |
|
Data Rate Per Lane |
fd |
10.3125 |
Gbps |
||
Humidity |
Rh |
5 |
85 |
% |
|
Power Dissipation |
Pm |
3.5 |
W |
||
Link Distance with G652 |
Rb |
D |
10 |
km |
Specifications
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
Differential input impedance |
Zin |
90 |
100 |
110 |
ohm |
Differential Output impedance |
Zout |
90 |
100 |
110 |
ohm |
Differential input voltage amplitude |
ΔVin |
350 |
1200 |
mVp-p |
|
Differential output voltage amplitude |
ΔVout |
425 |
1600 |
mVp-p |
|
Skew |
Sw |
300 |
ps |
||
Bit Error Rate |
BR |
E-12 |
|||
Input Logic Level High |
VIH |
2.0 |
VCC |
V |
|
Input Logic Level Low |
VIL |
0 |
0.8 |
V |
|
Output Logic Level High |
VOH |
VCC-0.5 |
VCC |
V |
|
Output Logic Level Low |
VOL |
0 |
0.4 |
V |
Note:
1. BER=10^-12; PRBS 2^该邮件地址已受到反垃圾邮件插件保护。要显示它需要在浏览器中启用 JavaScript。.
2. Differential input voltage amplitude is compliant with theIEEE802.3 Annex 86A and SFF8436,and it is measured at TP1 .
3. Differential output voltage amplitude is compliant with theIEEE802.3 Annex 86A and SFF8436,and it is measured at TP4 .
Optical Characteristics
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
Notes |
Transmitter |
||||||
Centre Wavelength |
λc |
1290 |
1310 |
1330 |
nm |
- |
SMSR |
σ |
30 |
- |
dB |
- |
|
Transmit OMA per Lane |
TxOMA |
-5.2 |
3.0 |
dBm |
||
Average launch power, each lane |
Pout |
-8.2 |
- |
0.5 |
dBm |
- |
Difference in launch power between any two lanes (OMA) |
Ptx,diff |
6.5 |
dB |
- |
||
Extinction Ratio |
ER |
3.5 |
- |
- |
dB |
- |
Transmitter and dispersion penalty (TDP), each lane |
TDP |
2.6 |
dB |
- |
||
Average launch power of OFF transmitter, each lane |
Poff |
-30 |
dBm |
- |
||
Optical Return Loss Tolerance (max) |
RLT |
12 |
dB |
|||
Transmitter Reflectance |
RT |
-12 |
dB |
|||
Eye Mask coordinates: X1, X2, X3, Y1, Y2, Y3 |
SPECIFICATION VALUES 0.25, 0.4, 0.45, 0.25, 0.28, 0.4 |
Hit Ratio = 5x10-5 |
||||
Receiver |
||||||
Centre Wavelength |
λc |
1290 |
1310 |
1330 |
nm |
- |
Stressed receiver sensitivity in OMA, each lane |
SEN |
-10.3 |
dBm |
1 |
||
Receiver sensitivity in OMA, each lane(PRBS 2^31-1 and BER=10^-12) |
-12.6 |
dBm |
2 |
|||
Maximum Average power at receiver input, each lane |
0.5 |
dBm |
- |
|||
Difference in Receive Power between any Two Lanes(OMA) |
Prx,diff |
7.5 |
dB |
|||
Receiver Reflectance |
RR |
-26 |
dB |
- |
||
LOS Assert |
LOSA |
-30 |
dBm |
- |
||
LOS De-Assert |
LOSD |
-14 |
dBm |
- |
||
LOS Hysteresis |
LOSH |
0.5 |
dB |
- |
Note:
- Measured with conformance test signal at TP3 for BER = 10e-12
- 10GBASE-LR spec .

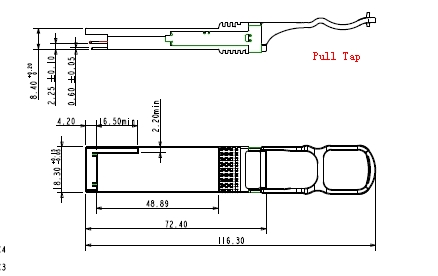

Mechanical Dimensions
Ordering information
Part Number |
Product Description |
FTCQ-4X-PSMLR4 |
4x10GBASE-LR/W QSFP+ PSM LR4 up to 10km, MPO connector, 0 ~ +70℃ |
FTCQ-4X-PSMLR4I |
4x10GBASE-LR/W QSFP+ PSM LR4 up to 10km, MPO connector, -40 ~ +85℃ |
